Description

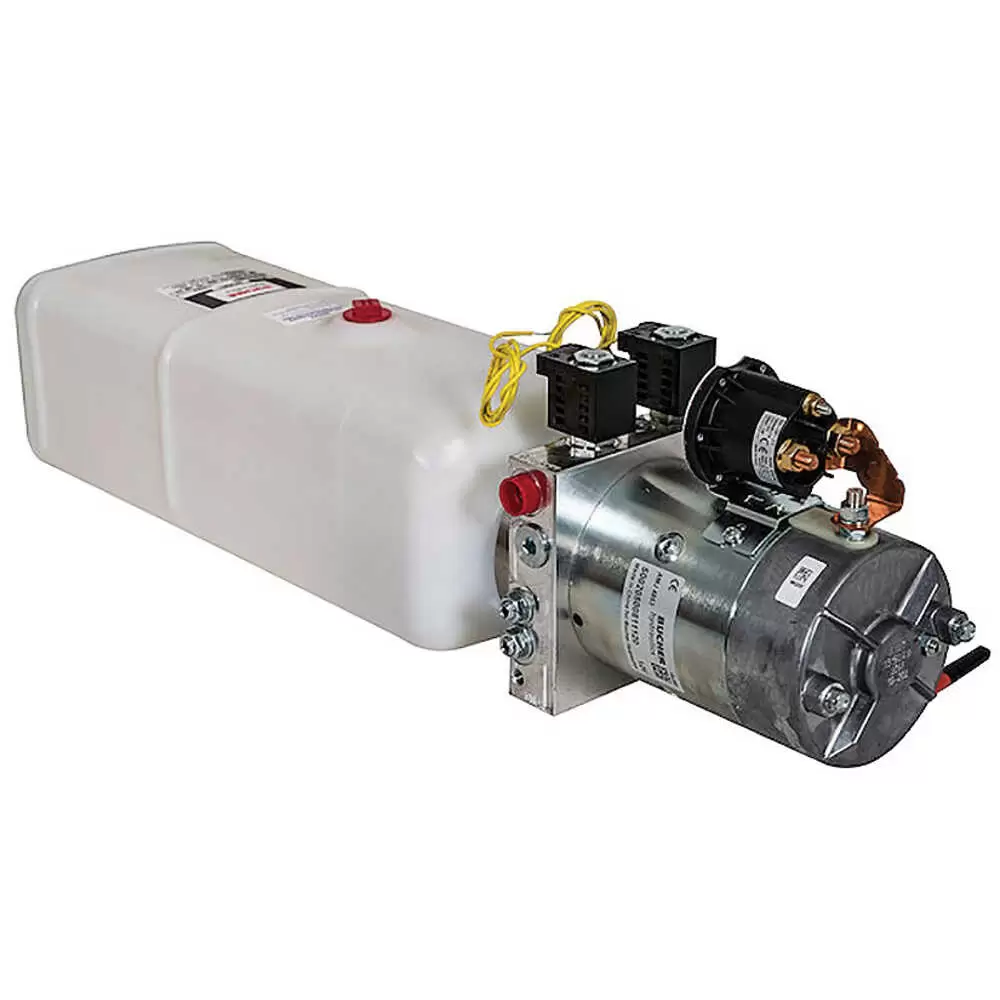

4-Way DC power unit with horizontal 1.5-gallon reservoir - Electric control series

The 4-Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack for operating your snowplow, lift gate, dump trailer, RV slide outs, etc. You get quick-response, power up/power down functionality from one small package that contains a built-in pump, 12V motor, reservoir, 4 function valve, triple filtration, factory-wired control station, and more. Push-button electric controls make the job easy. It's built to withstand weather and tough work demands. Choose from a polymer or steel reservoir in two sizes to meet your needs. 3-1/4" distance from center-to-center between mounting holes.

Product Common Use: Snowplows, Lift Gates, Dump Bodies, Car Haulers

Features:

• Compact, cost-effective power for operating a snowplow, lift gate, dump trailer, RV slide outs, and more.
• Includes everything you need to power the job.
• 4-way functionality: power-up/power-down.
• Includes triple filtration for longer life.

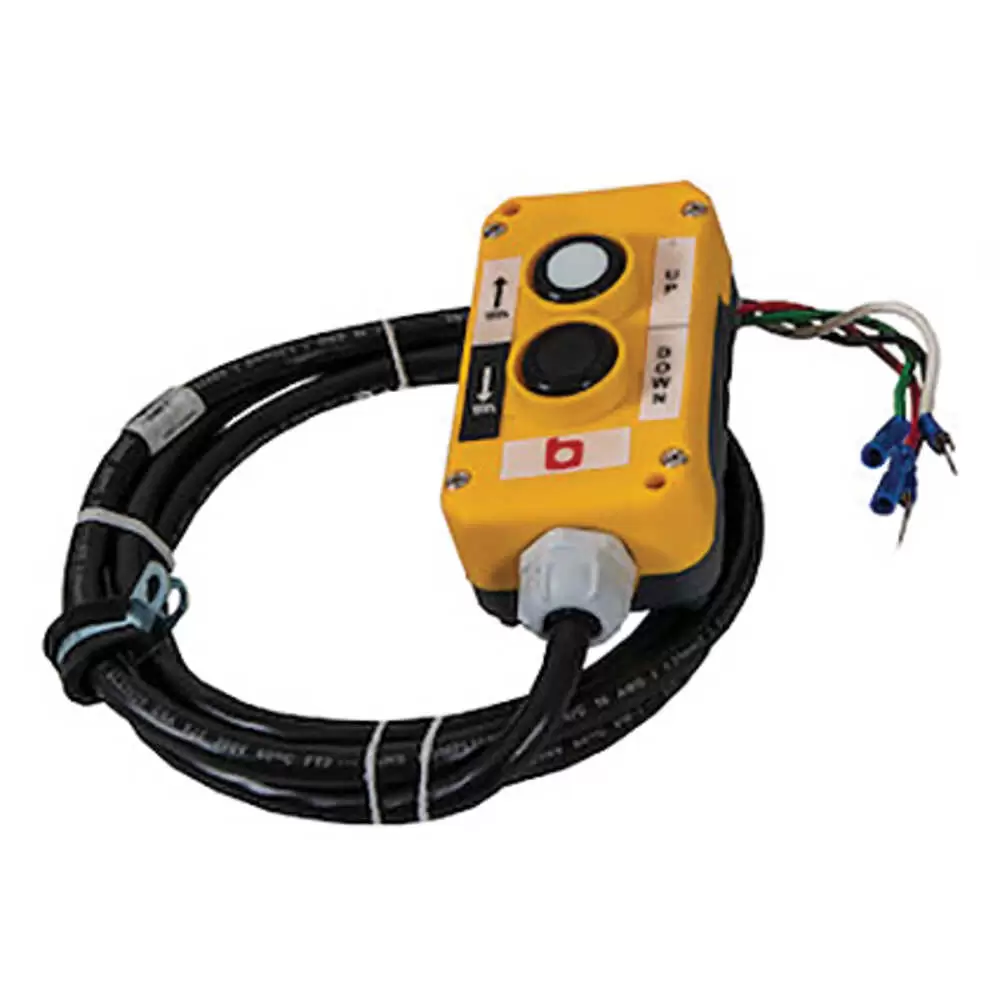

• Easy push-button electric controls.
• Built to withstand harsh weather and tough work demands.

Product Details:

• Manual Or Push Button: Push Button
• Mounting Position: Horizontal
• Reservoir Material: Glass Filled Nylon
• Motor Horsepower: 2 HP
• Reservoir Volume: 1.5 Gallon
• Pressure Rating: 2500 PSI
• Motor Voltage: 12 VDC
• Width: 6.60"
• Length: 26.38"
• Height: 7.50"
• 3-1/4" distance from center-to-center between mounting holes
• Spool Action: Power Up/Power Down
• Number Of Cartridge Valves: 2
• Outlet Port Size: 3/8" NPT
• Controller Included: Yes
• Control Cable Length: 72"
• Motor Power (KW): 1.5
• Shipping Weight: 40.250
• UPC: 724920095617

Tech Specs

OEM/Other Numbers:

• PU642LR

Estimated Shipping Dimensions: 28" x 12" x 8"

Weight: 28.00 lbs
