Description

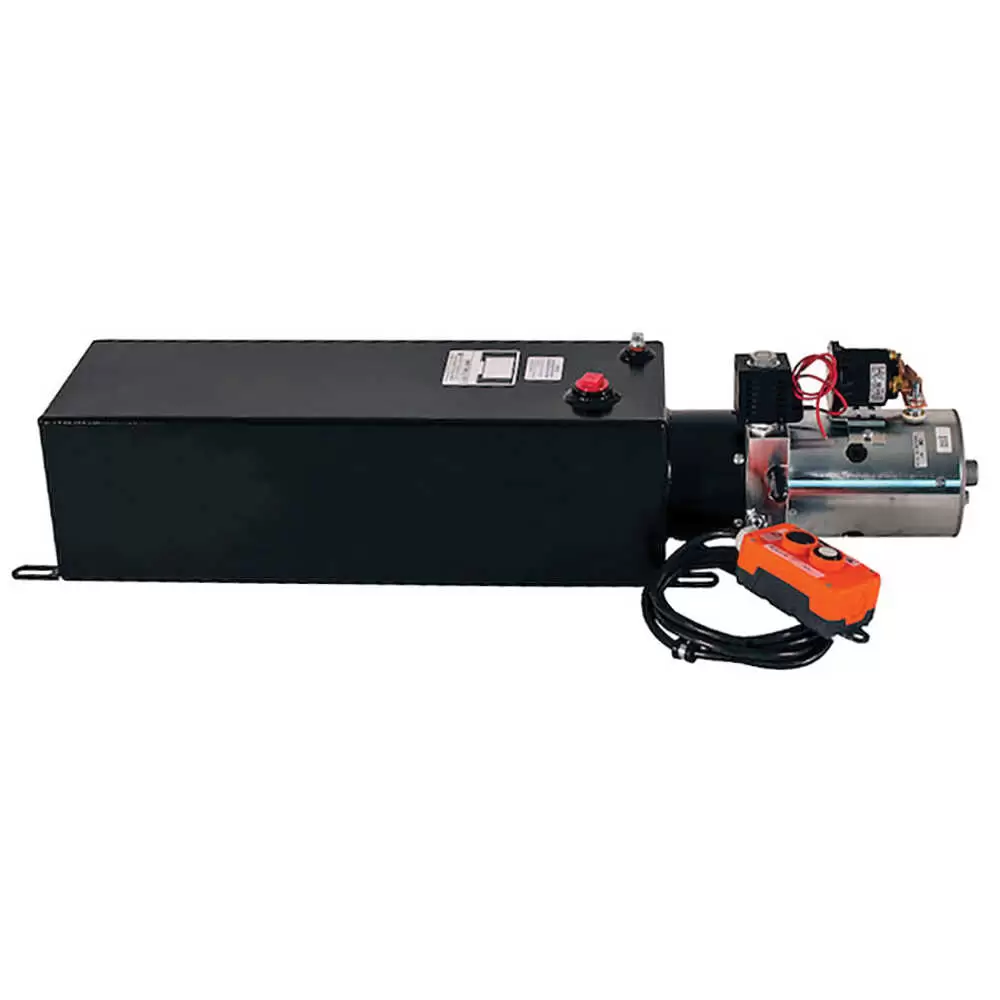

3-Way Valve DC Power Unit - Electric Controls is an all-in-one, compact power pack. Its large 8 GPM, 3 function dump valve and power up/gravity down hydraulic application make it ideal for dump applications. You get quick-response functionality at your fingertips from one small package. The unit contains a built-in pump, 12V motor, steel reservoir, suction filter, and push-button control station. It also features an externally mounted release valve with flow control on down. The unit is built to withstand weather and tough work demands.

Features:

• Compact, cost-effective power ideal for dump applications.
• Includes everything you need to power the job.
• Easy push-button controls.
• 3-way functionality: power up/gravity down.
• Built to withstand harsh weather and tough work demands.

Product Details:

• Manual Or Push Button: Push Button
• Mounting Position: Horizontal
• Reservoir Material: Carbon Steel
• Motor Horsepower: 2 HP
• Reservoir Volume (Gal): 3.00
• Pressure Rating: 2500 PSI
• Motor Voltage: 12 VDC
• Width: 7.91"
• Length: 32.94"
• Height: 7.72"
• Spool Action: Power Up/Gravity Down
• Number Of Cartridge Valves: 1
• Outlet Port Size: 3/8" NPT
• Controller Included: Yes
• Control Cable Length: 72"
• Motor Power (KW): 1.5

Tech Specs

OEM/Other Numbers:

• PU303LRS

Estimated Shipping Dimensions: 33" x 8" x 8"

Weight: 47.00 lbs
