3-Way DC Power Unit with 1.5-Gallon Poly Reservoir - Electric Control Series

Estimated to ship in 16-23 days from closest warehouse!

$100 Coupon! Share:

Facebook

SMS Text

Description

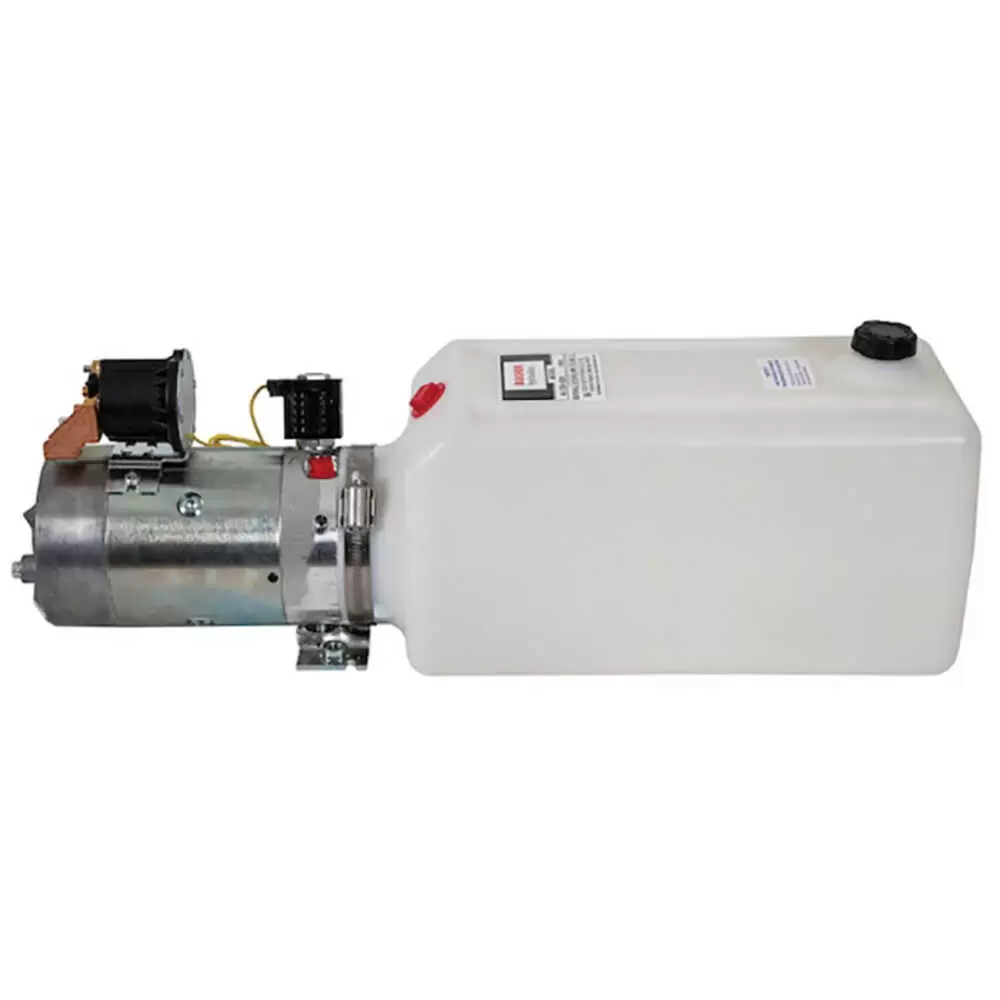

3-Way DC power unit with 1.5-gallon poly reservoir - Electric Control Series

The 3-Way DC Power Unit - Electric Controls is an all-in-one, compact power pack. It's ideal for any power up/gravity down hydraulic application such as a plow or dump body. You get quick-response functionality at your fingertips from one small package. The unit contains a built-in pump, 12V motor, polymer or steel reservoir, 3 function valve, double filtration, factory-wired control station, and more. It also features a solenoid-actuated, externally mounted release valve. It's built to withstand weather and tough work demands. 3-1/4" distance from center-to-center between mounting holes.

Product Common Use: Snowplows, Dump Bodies

Features:

Compact, cost-effective power for operating a snowplow or dump trailer.
Includes everything you need to power the job.
3-way functionality: power up/gravity down.
Built to withstand harsh weather and tough work demands.
Easy push-button controls.

Product Details:

Manual Or Push Button: Push Button
Mounting Position: Horizontal
Reservoir Material: Glass Filled Nylon
Motor Horsepower: 2 HP
Reservoir Volume: 1.50 Gallons
Pressure Rating: 2500 PSI
Motor Voltage: 12 VDC
Width: 6.69"
Length: 22.38"
Height: 8.09"
3-1/4" distance from center-to-center between mounting holes
Spool Action: Power Up/Gravity Down
Number Of Cartridge Valves: 1
Outlet Port Size: 3/8" NPT
Controller Included: Yes
Control Cable Length: 72"
Motor Power (KW): 1.5
Shipping Weight: 29.060
UPC: 724920073851

Tech Specs

OEM/Other Numbers:

PU319LR

Estimated Shipping Dimensions: 27" x 12" x 8"

Weight: 28.00 lbs
