Description

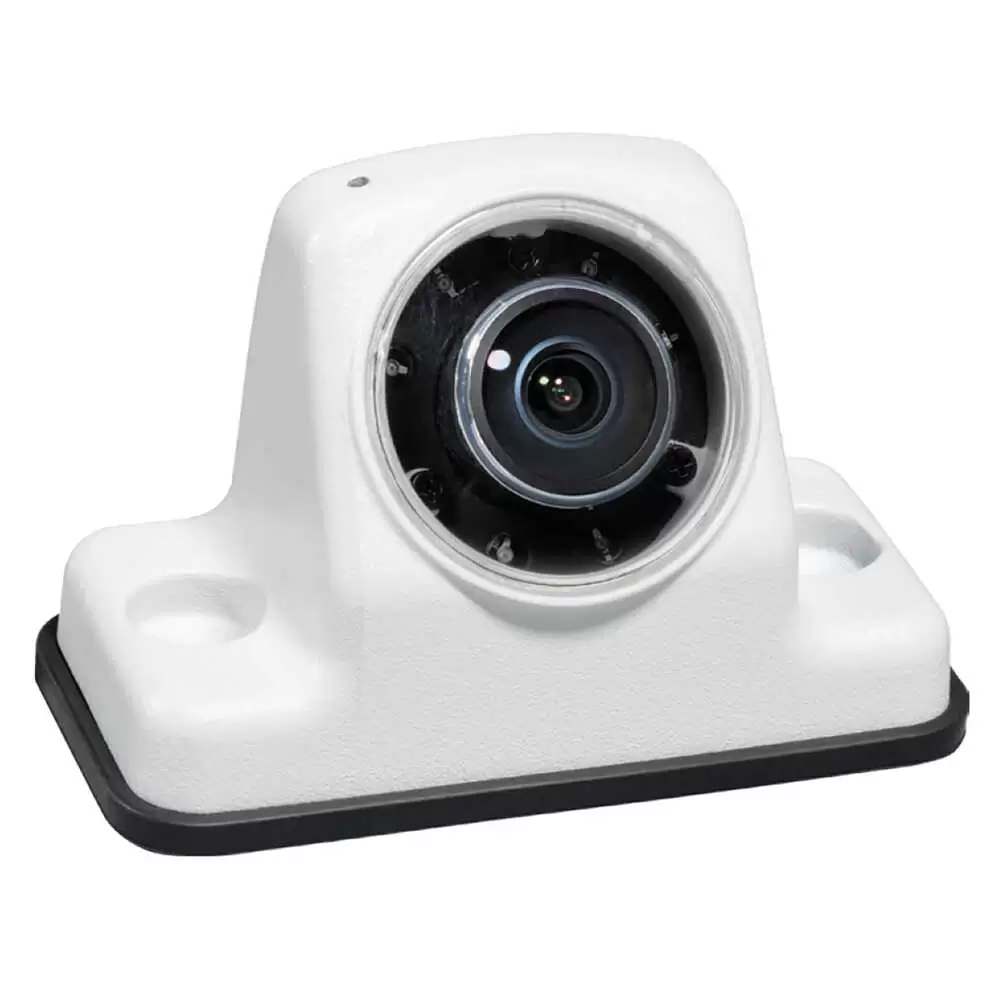

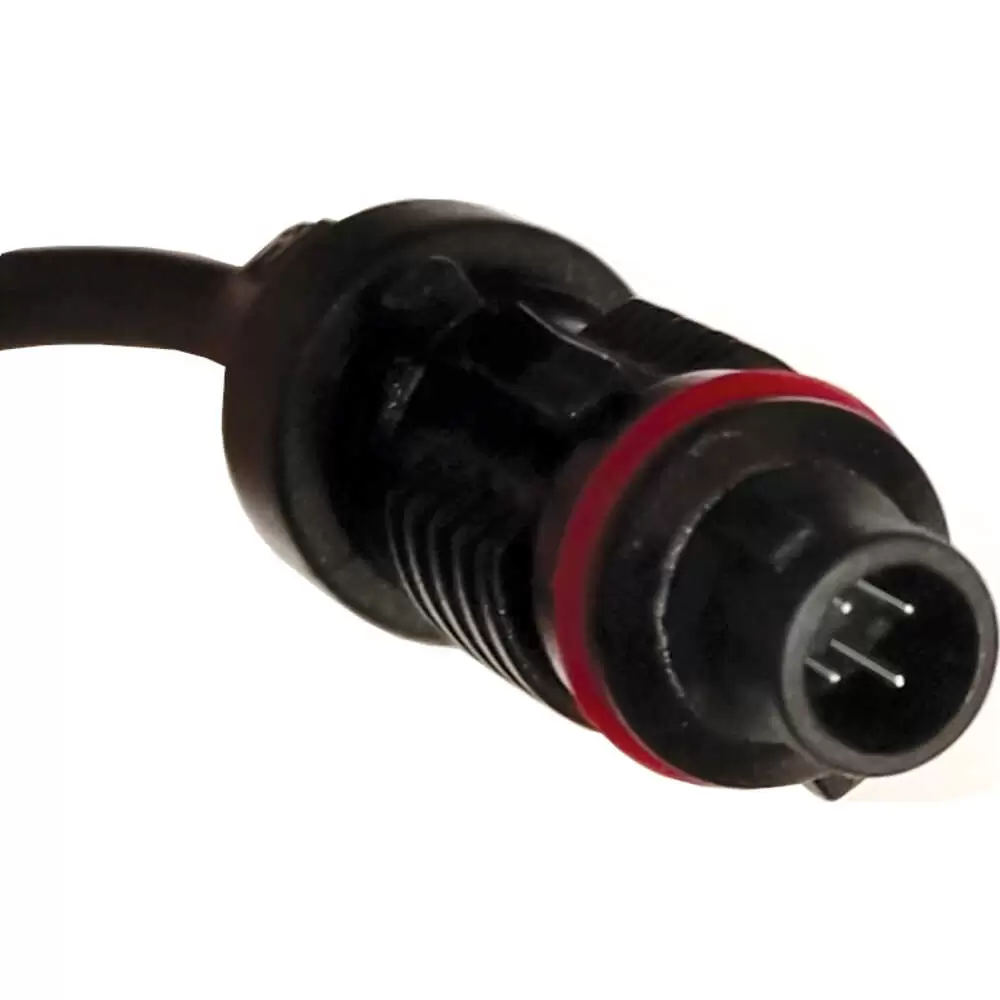

Voyager AHD Color Surface Mount Heavy Duty Backup Camera with IR LED has a white housing and built-in microphone. This has a 4 pin CEC connector used on Voyager cameras. This high-resolution camera uses CMOS technology and IR LED low light assist to provide a clear picture with a 146-degree viewing angle. 2 Year Warranty

Mounting Centers: 1.89" Center to Center
Overall Dim: 2.72" x 1.76" x 1.45"

Features:

• High Performance Color Optics
• White Powder-Coated Aluminum Housing
• Compact Size
• 6 Pcs IR Low Light Assist
• Microphone
• Surface Mount
• CMOS Technology
• Protection circuitry to handle external power source conditions
• Waterproof IP69K
• Corrosion Resistant (ASTM-B117)
• FCC Certified

Specifications:

Weight (Lbs.)	0.345
Overall Dimensions	2.72" x 1.76" x 1.45"
Camera Type	CMOS
B&W or Color	Color
Rear or Side	Rear
Power System	12VDC
Operating Voltage Range	9V-15VDC
Waterproof Rating	IP69K
Operating/Storage Temperature Range	-40°F to 185°F
Operating Relative Humidity	100% RH
(D) Diagonal Viewing Angle	170° ± 5°
(H) Horizontal Viewing Angle	160° ± 3°
(V) Vertical Viewing Angle	90° ± 3°
IR LED Low Light Enhancement	Yes
Built-in Microphone	Yes
Video Output Signal Format	NTSC
Sensor (Inches)	1/3"
Sensitivity	0 Lux
Resolution	720 H x 480 V
Iris/Shutter Type	Electronic Rolling Shutter
Image Orientation	Mirror

Tech Specs

Estimated Shipping Dimensions: 5" x 2" x 2"

Weight: 0.25 lbs

Made in: Taiwan
