In Stock, Ready to Ship!

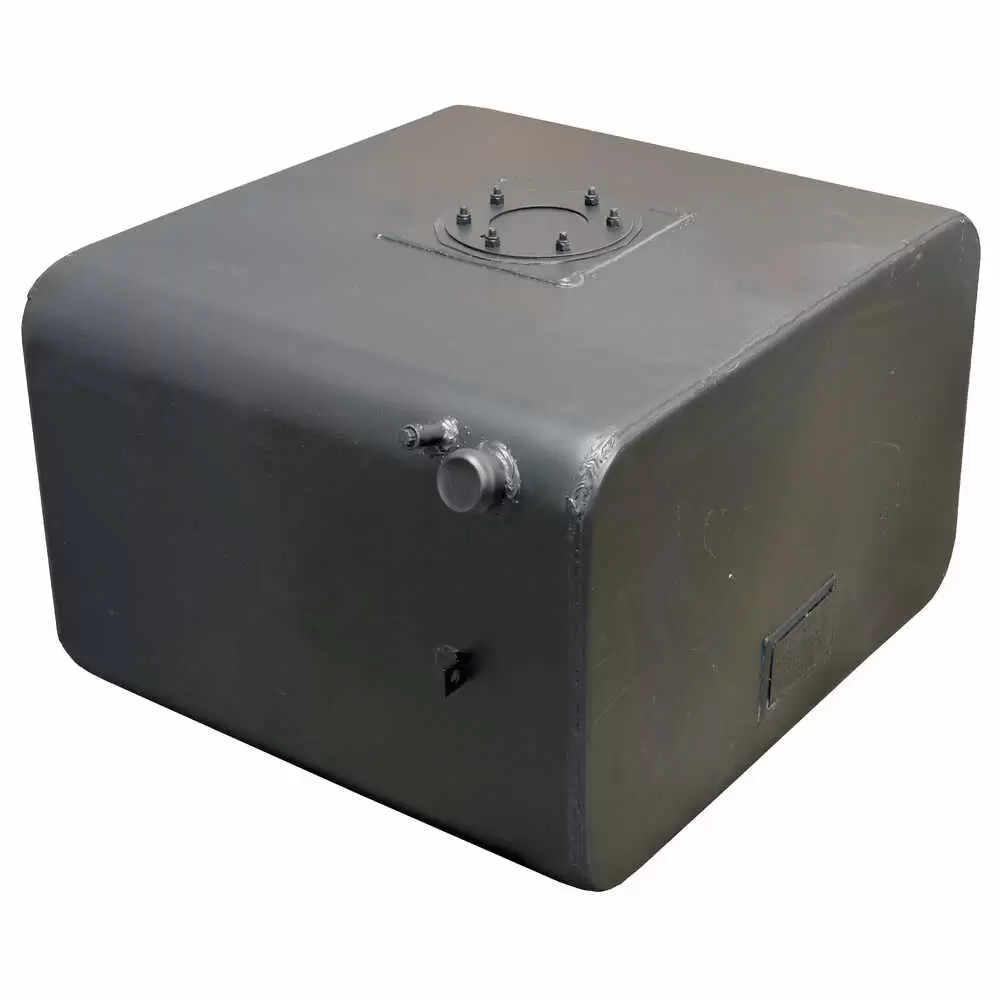

40 Gallon 'Tall' Fuel tank for the 2010 and on Workhorse chassis for unleaded gas (Measures 16.75" tall). Fuel filler is 5" from right side of tank. The fuel sender now uses a new style mount that eliminates the hard to remove snap ring. A new flat ring plate mounts the fuel sender using stainless steel bolts that won't rust. Future fuel sender replacements are now an easy installation. Always order a new O-ring (81-820) when ordering this tank even if you are using your original fuel sender. Tank includes a grounding strap mount bracket. This tank does not have an auxiliary port.
This tank measures: 26" W x 26.5" D x 16.75" H
For a replacement fuel pump with O-ring, order 81-819
For a replacement O-ring only, order 81-820
For a 5/8" ID flexible vent tube, order 81-858
For a 1-3/4 ID flexible filler tube, order 81-954
Corsol Coated on the Outside
This tank has a Corsol treatment on the outside. Corsol corrosion protection is a complete metal treatment system that protects steel from the corrosive effects of magnesium chloride, calcium chloride, sodium chloride, rock chipping, and extreme temperatures.
Aluminized on the Inside
Our tanks are aluminized on the inside to help protect against corrosion. Aluminized steel is a carbon steel that has been hot-dip coated with aluminum-silicon alloy. This process assures a tight metallurgical bond between the steel sheet and the aluminum coating, producing a material with a unique combination of properties possessed neither by steel nor by aluminum alone.
Estimated Shipping Dimensions: 31" x 29" x 17"
Weight: 92.00 lbs
