9.75" Surface Mount Warning Tricolor, 36 LED Amber/Green/White Clear Lens

SKU: M20497YGW-TC

9.75" Surface Mount Warning Tricolor, 36 LED Amber/Green/White Clear Lens

SKU: M20497YGW-TC
$127.92

Out of Stock but Order Now! Estimated to ship in 7 days

Description

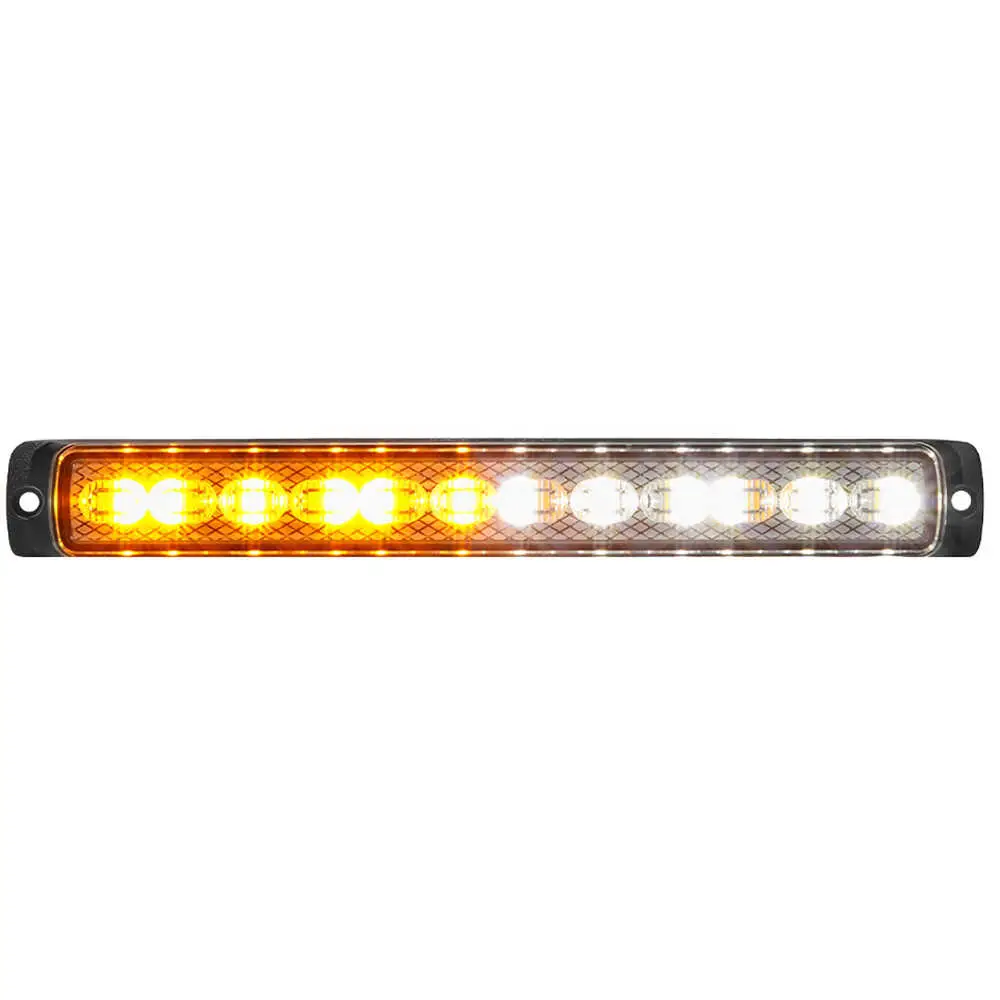

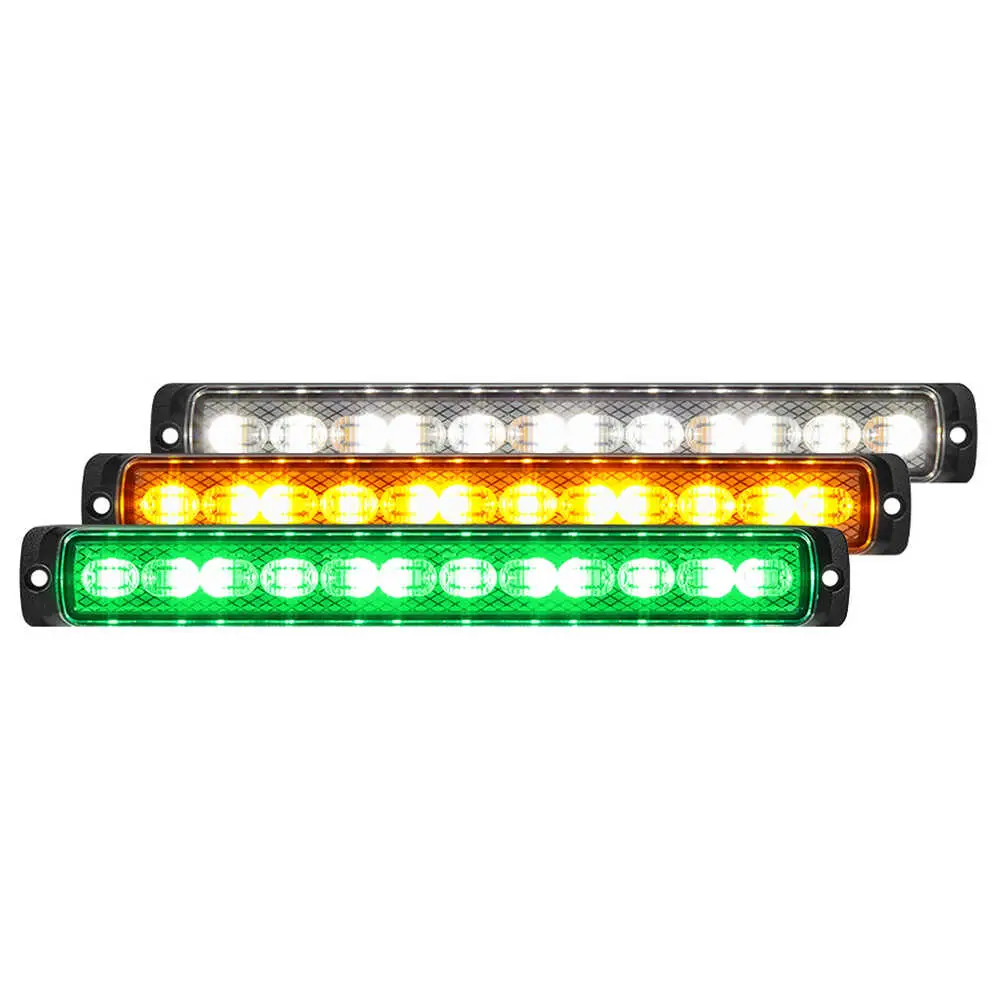

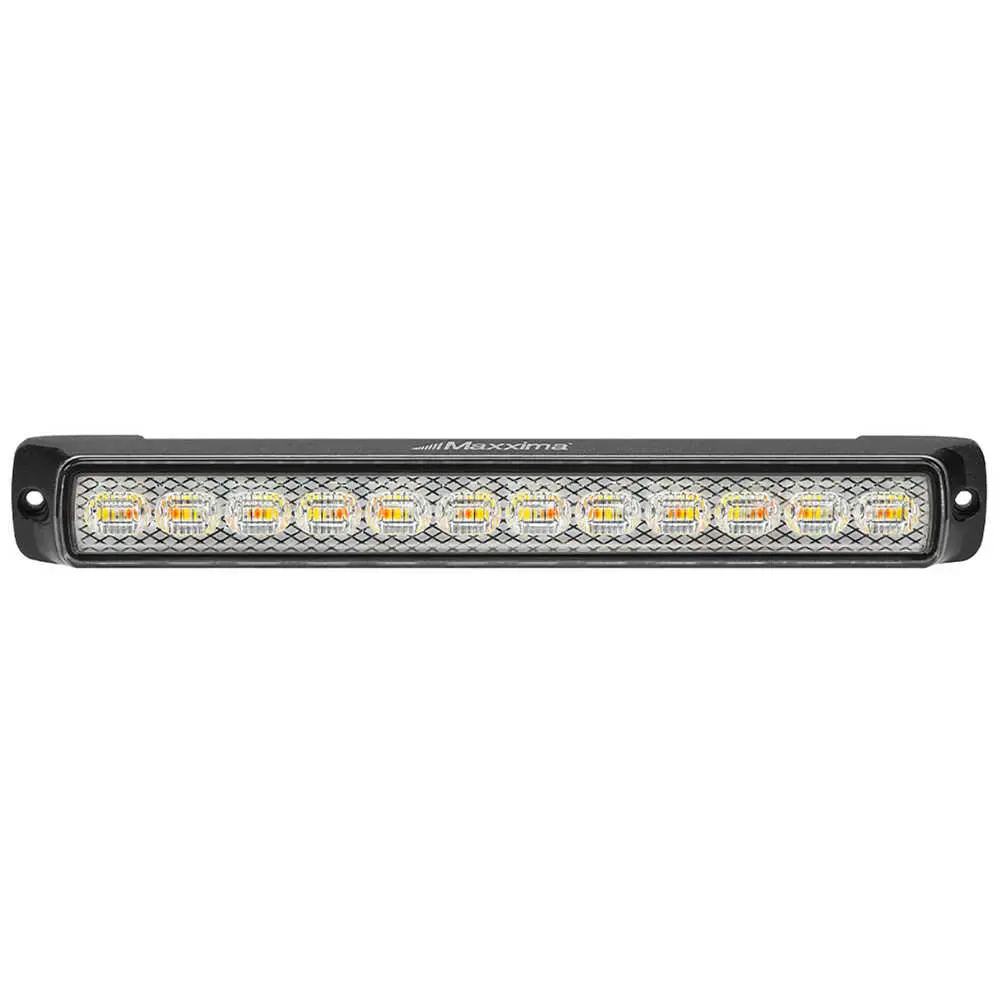

9.75" Surface Mount Warning Tricolor, 36 LED Amber/Green/White Clear Lens

The M20497YGW-TC is a 9.75” tri-color LED warning light engineered for maximum visibility in emergency and safety applications. Featuring 36 high-output LEDs (12 amber / 12 green / 12 white) with a clear lens, this low-profile surface mount light delivers SAE J595 Class 1 warning performance with versatile flash and color configurations. Choose from full-width or split-color patterns, with colors operating individually, simultaneously, or alternating for enhanced signaling flexibility. With 28 selectable flash patterns, programmable color phase and pilot mode, plus up to 7 memory slots, the M20497YGW-TC provides professional-grade customization for fleets, emergency, utility, and municipal vehicles. Designed for horizontal or vertical mounting, this dual-voltage warning light offers reliable performance and simple installation in demanding environments. Backed by a 5-year warranty.

SPECIFICATIONS

  • Voltage: 12/24 VDC Dual Voltage
  • Amp Draw: 0.8A 12V / 0.4A 24V
  • Dimensions: 9.75”W x 1.25”H x 0.8”D
  • Mounting: 2 Hole Surface Mount, 9.3” Center to Center

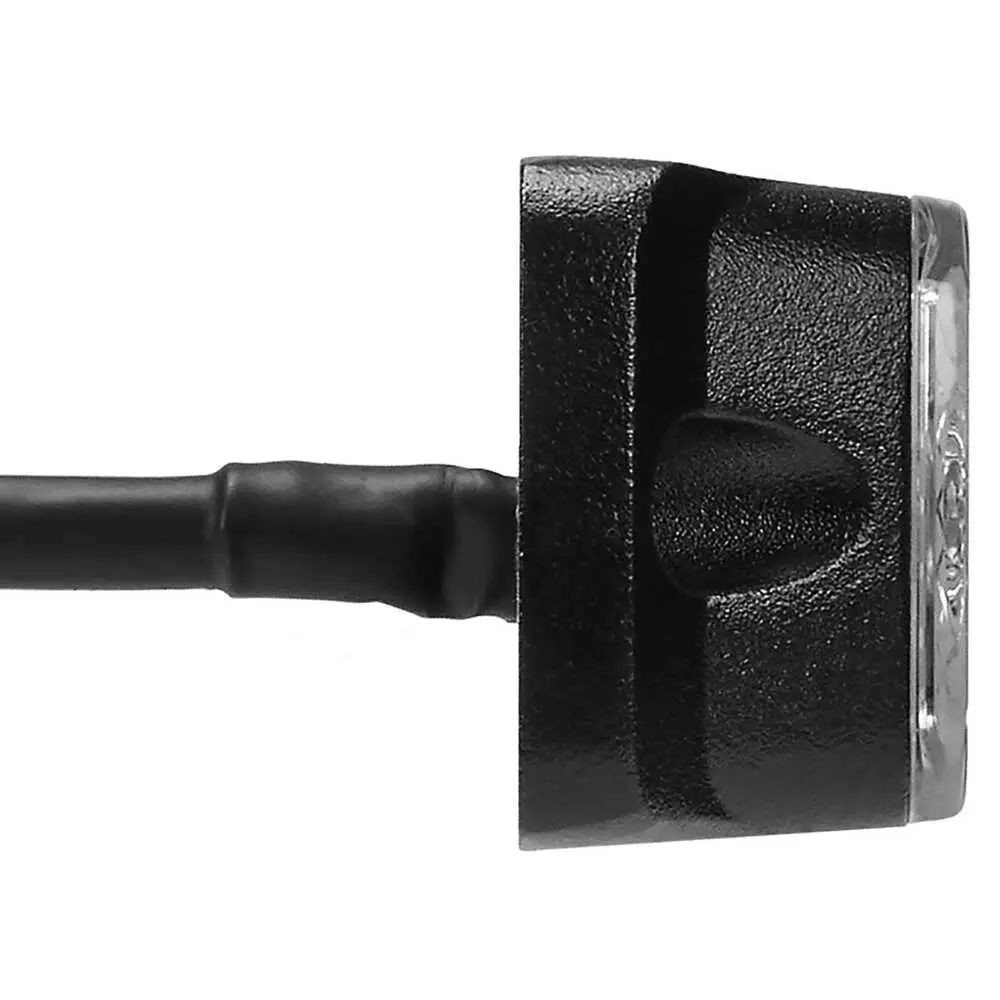

  • Connector: 5 Jacketed Leads, Blunt Cut, 13”
  • LEDs: 36 (12 Each Color)
  • Legal Heading: W-1M

FEATURES & BENEFITS

  • 9.75” Wide Surface Mount Warning Light
  • SAE J595 Class 1

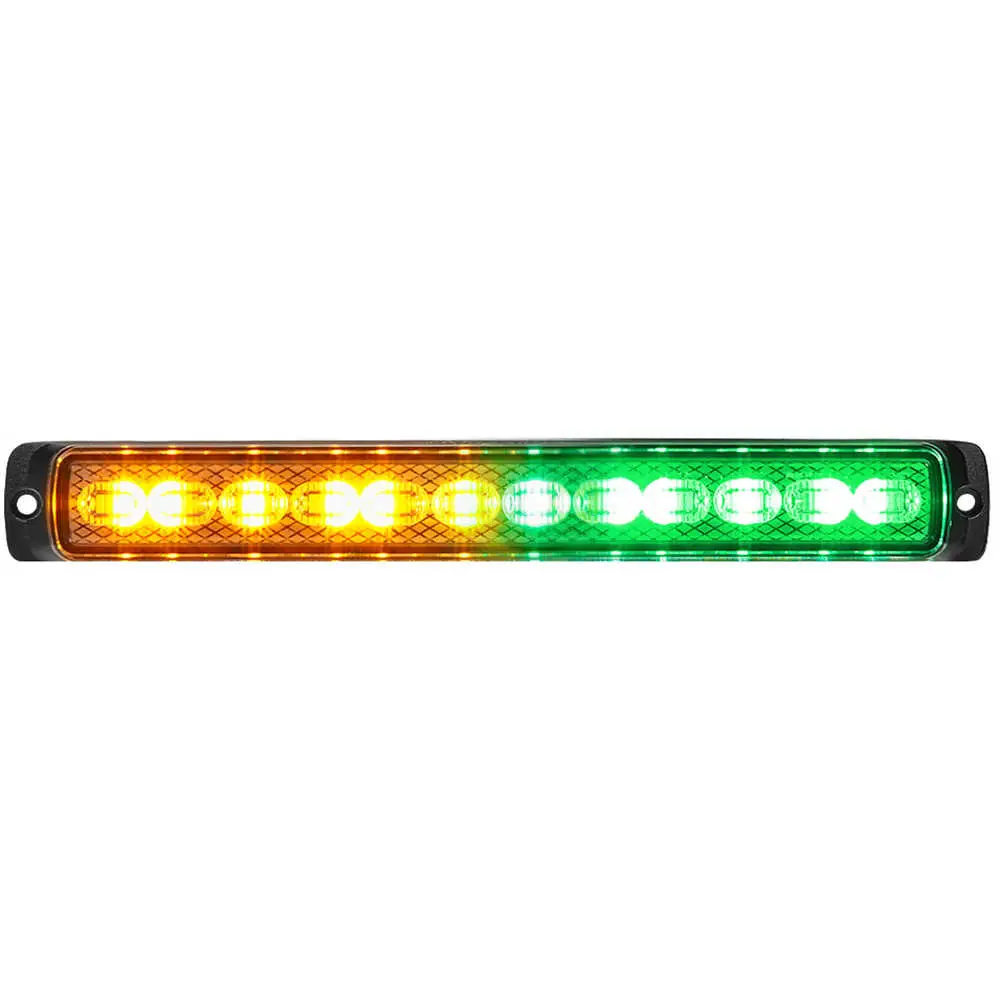

  • Tri-Color - Full Width of Light or Split Color Patterns
  • Colors Display Individually, Simultaneously, or Alternating
  • 28 Selectable Flash Patterns
  • Programmable Pattern, Color Phase, and Pilot Mode
  • Up to 7 Programmable Modes or Memory Slots
  • Also Available in Dual Color Models
  • Compliant Horizontal or Vertical Mount
  • 5 Year Warranty

Tech Specs

Estimated Shipping Dimensions: 10" x 2" x 1"

When you are looking for an inexpensive solution but want the reliability of buying from someone that's been around the block a few times, you'll need take a close look at Maxxima's line of quality LED Lighting. From Stop, Tail & Turn (STT), Emergency, Interior Cargo, Clearance and Side Marker LED Lamps, Maxxima has been at the forefront of innovation and revolutionary lighting products for trucks, buses, trailers, medium and heavy-duty trucks. LED lights consume 10% of the energy required for incandescent, they are more resistant to shock, vibration and last a phenomenal 100,000 hours, or about a decade of regular use. Maxxima proudly offers a five-year warranty for their line of LED lights and Mill Supply is proud to offer the Maxxima line.
