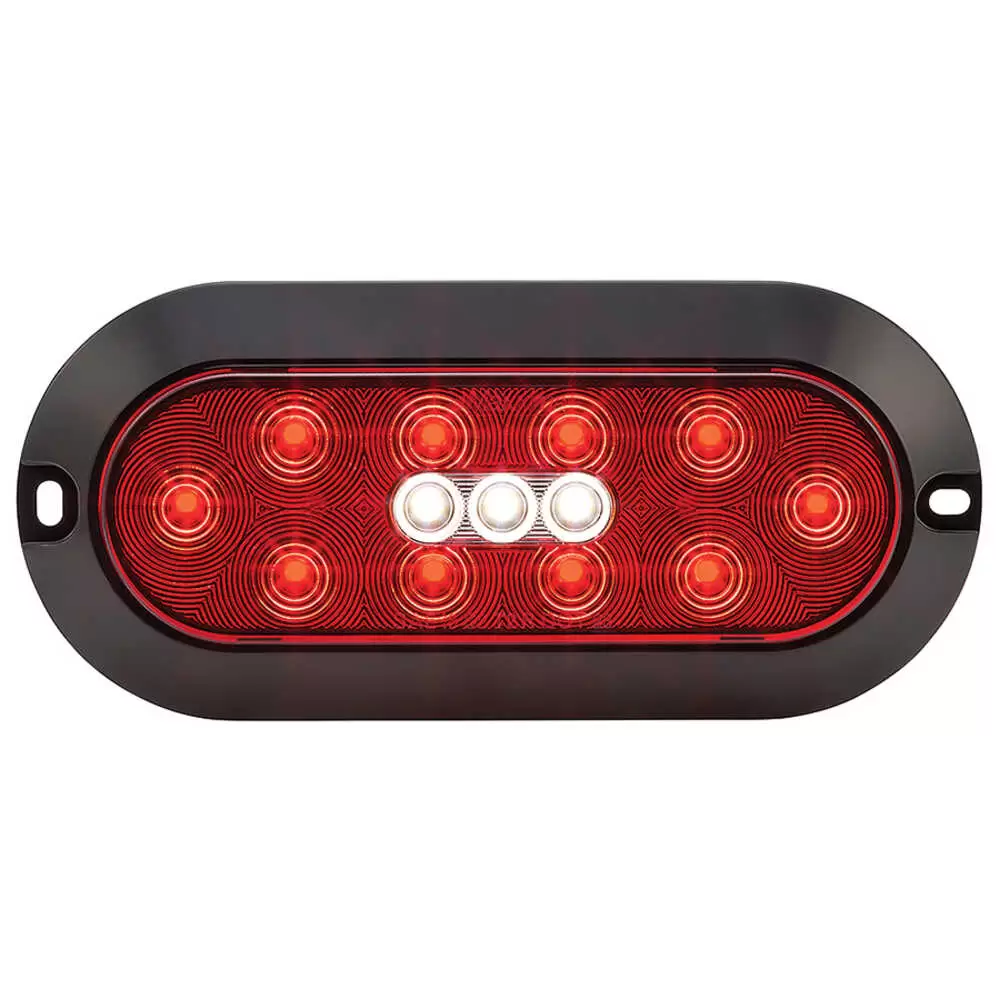

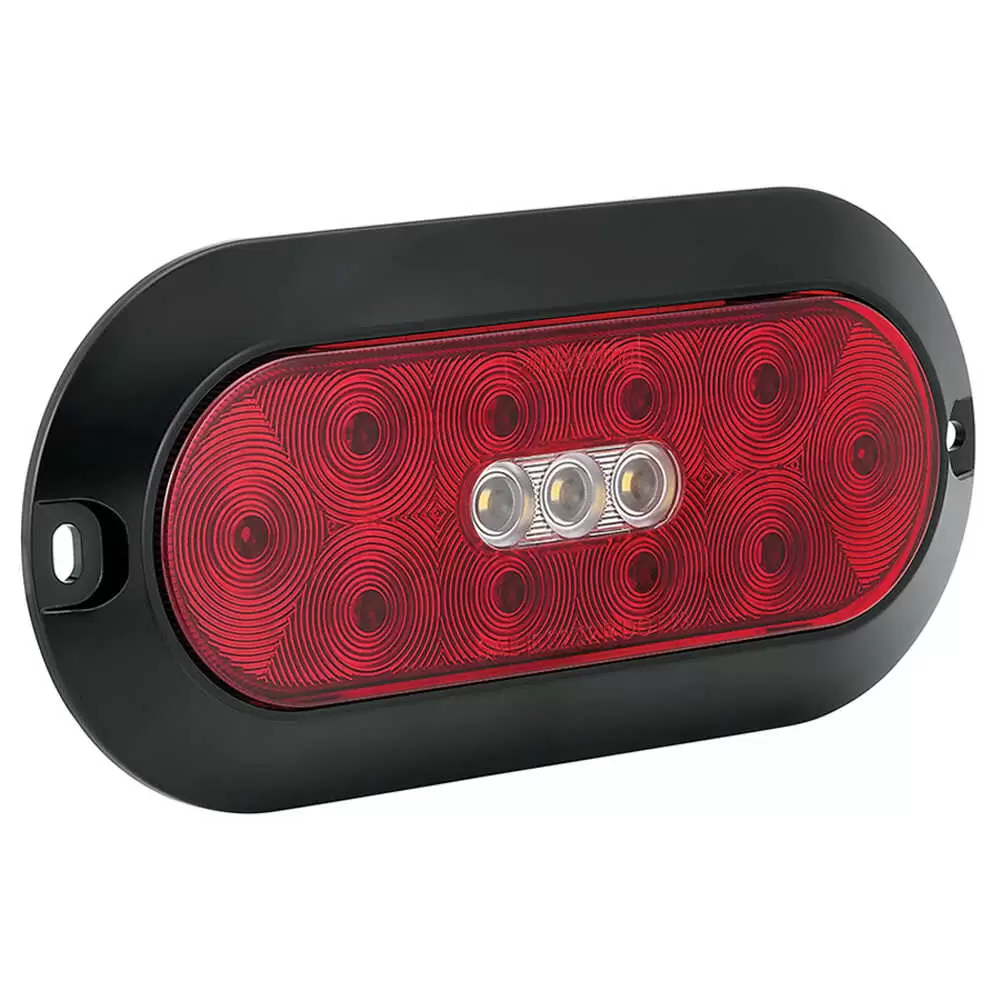

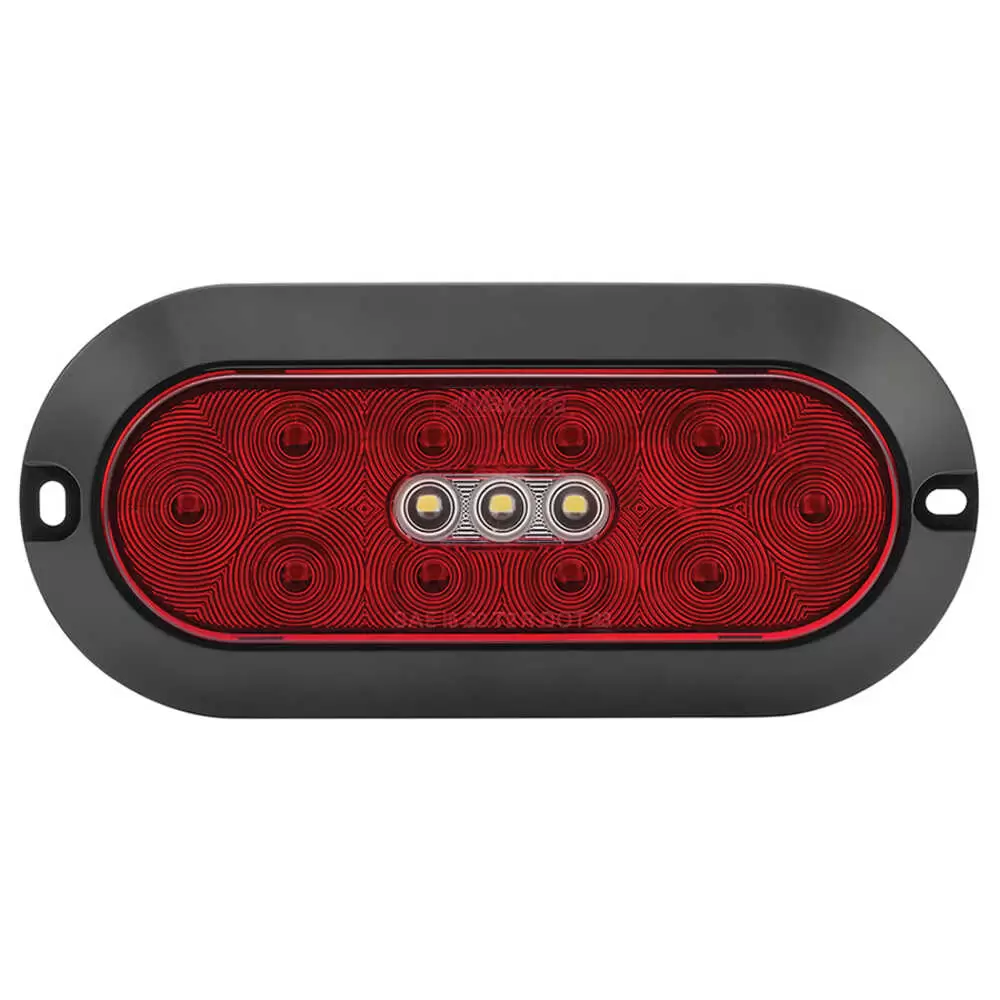

6" Surface Mount Oval Hybrid LED Combination Stop/Turn/Tail and Back-Up Light

SKU: M-85620R

6" Surface Mount Oval Hybrid LED Combination Stop/Turn/Tail and Back-Up Light

SKU: M-85620R
$39.70

In Stock, Ready to Ship!

Description

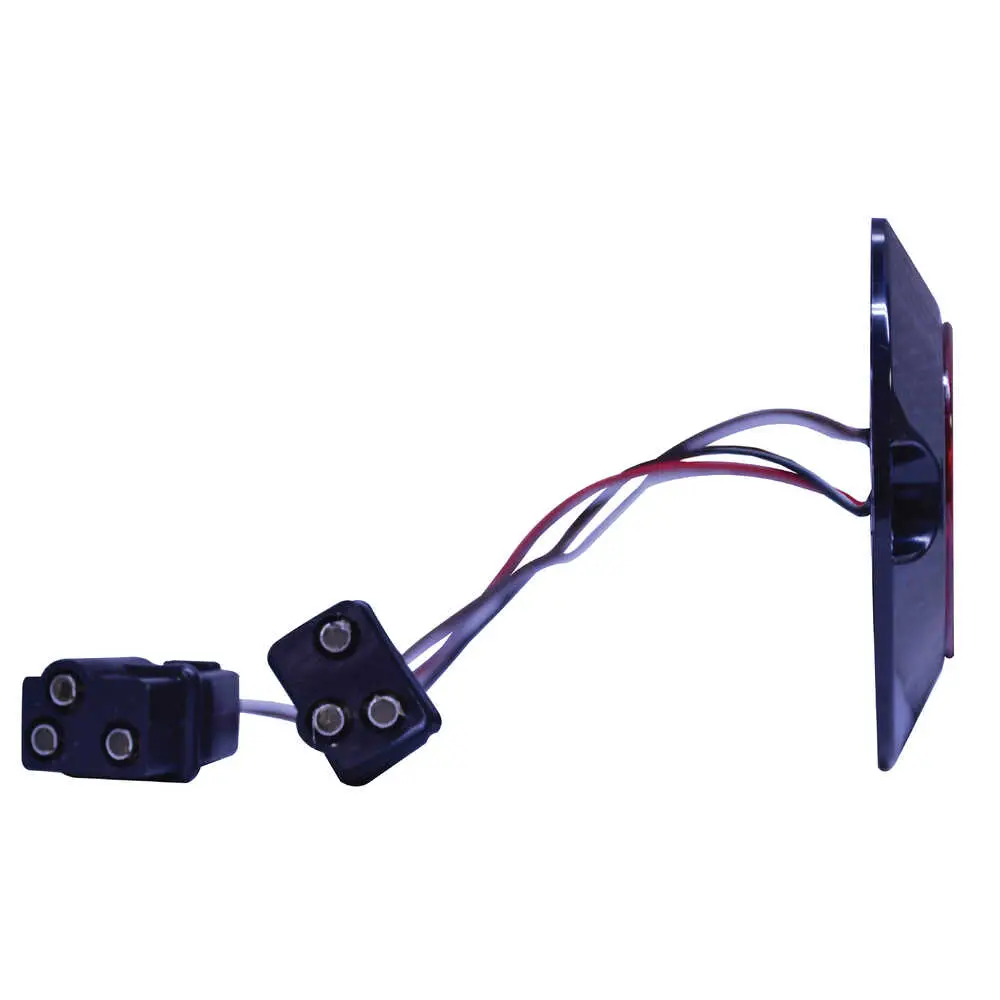

The M85620R is a surface mount oval hybrid LED combination stop/turn/tail and back-up light. It features 10 LEDs for the red STT functions, and 3 LEDs for the white back-up and is DOT compliant in both horizontal and vertical mounts. Its integrated mounting flange provides a secure mount and fits industry standard 7.25” bolt spacing. It requires 3 holes: (2) 3/16” mounting holes, and (1) 1” hole for the cable exit. The M85620R has two PL-3 connectors on 7” leads, one for the S/T/T circuit and one for the BU circuit. This light features a polycarbonate lens & housing and is backed by a 5-year warranty.

Features:

  • 6” Oval Hybrid Combo Stop/Turn/Tail & Back-Up
  • Similar Look & Size as M63320-Series
  • Replaces M85615R & M85616R
  • Industry Standard 7.25” Bolt Spacing
  • Qty. (2) Industry Standard PL-3 Three-Pin Connectors
  • Polycarbonate Lens & Housing
  • DOT Compliant in Both Horizontal or Vertical Mount
  • 5 Year Warranty

Product Details:

  • LEDs 13 (10 Red, 3 White)
  • Voltage 12.8VDC
  • Amp Draw RED S/T/T: 150mA / 10mA
  • WHITE B-U: 150mA
  • Dimensions 7.8” W x 3.5” H x 0.6” D
  • Mounting 2 Hole Surface, 7.25” C to C
  • Connector Qty. (2) PL-3, 7” Leads

Tech Specs

Estimated Shipping Dimensions: 8" x 4" x 1"

Weight: 0.35 lbs

When you are looking for an inexpensive solution but want the reliability of buying from someone that's been around the block a few times, you'll need take a close look at Maxxima's line of quality LED Lighting. From Stop, Tail & Turn (STT), Emergency, Interior Cargo, Clearance and Side Marker LED Lamps, Maxxima has been at the forefront of innovation and revolutionary lighting products for trucks, buses, trailers, medium and heavy-duty trucks. LED lights consume 10% of the energy required for incandescent, they are more resistant to shock, vibration and last a phenomenal 100,000 hours, or about a decade of regular use. Maxxima proudly offers a five-year warranty for their line of LED lights and Mill Supply is proud to offer the Maxxima line.
