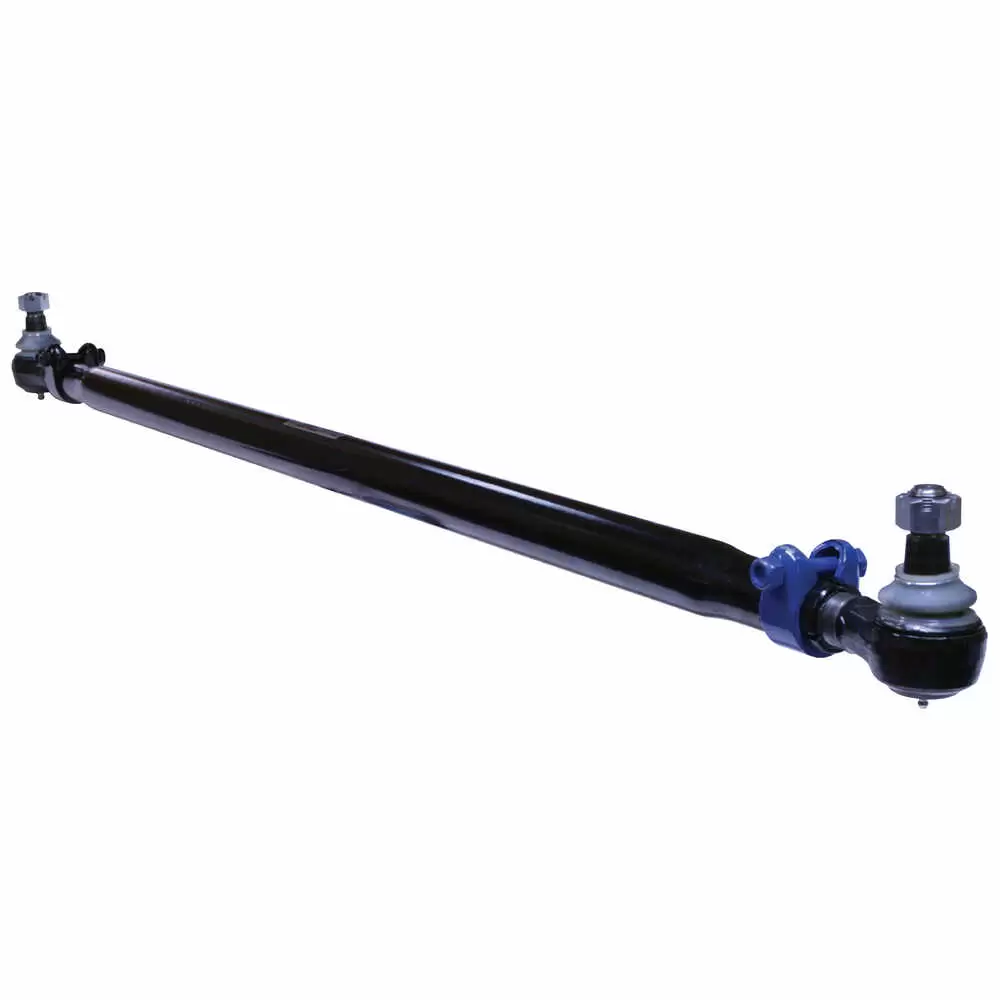

Stemco QWIKTIE Tie Rod Assembly for 16,000 to 20,000 Front Axles

SKU: 89-625

Stemco QWIKTIE Tie Rod Assembly for 16,000 to 20,000 Front Axles

SKU: 89-625
$299.95

Out of Stock but Order Now! Estimated to ship in 5 days

Description

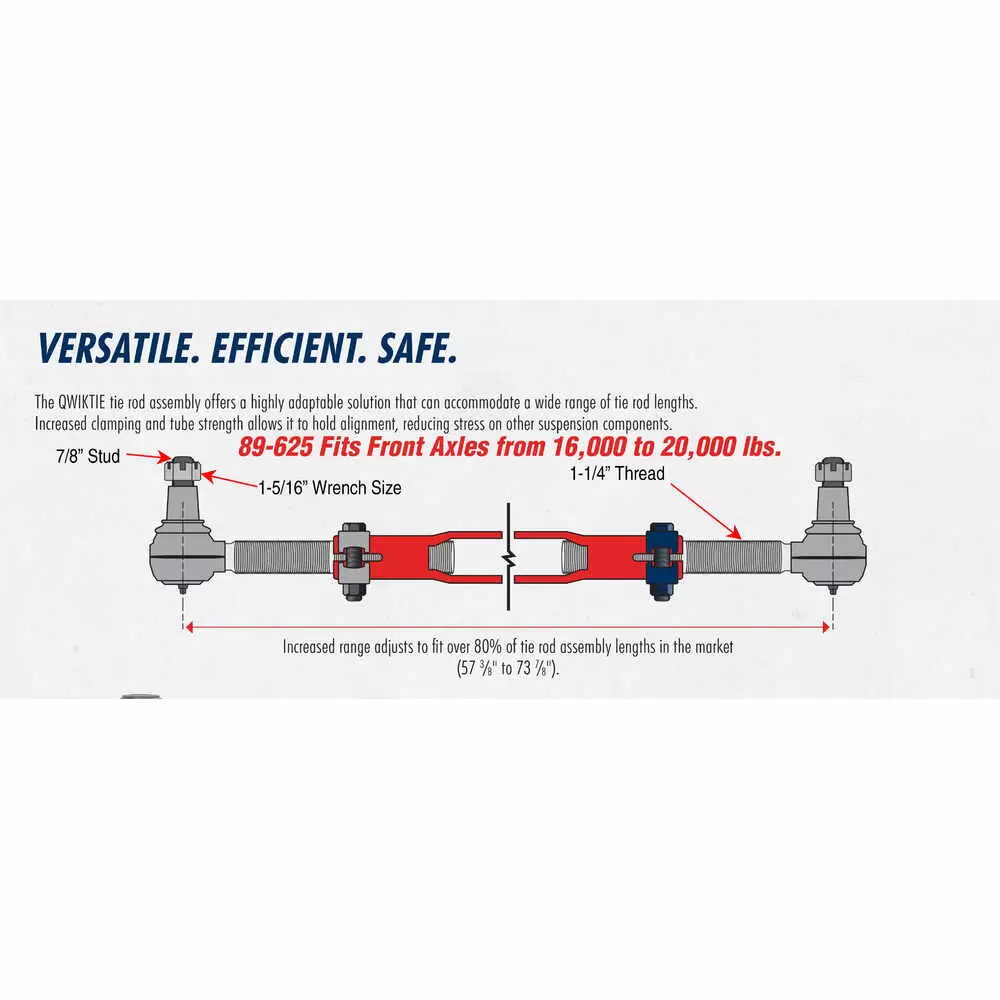

Stemco QWIKTIE Tie Rod Assy that is used on axles from 16,000 up to 20,000 lbs. Fits tie rods from 57-3/8" up to 73-7/8" long. This tie rod has 7/8" stud bolts with a 1-5/16" Castle nut wrench size that are popular on heavy-duty Medium Duty Trucks.

Developed for Trucks that require a heavy front suspension. Practically eliminates tie rod breakage on:

  • Waste Management Trucks
  • Refuse Trucks with front end dumping
  • Municipal Snow Plows
  • Dump Trucks

The all-new QWIKTIE tie rod assembly adjusts to fit over 80% of straight tie rod assembly lengths and styles, reducing overhead stocking costs for dealers/distributors and eliminating the need to improvise repairs while waiting for a part to arrive. QWIKTIE assemblies also feature finer threads for increased precision and accuracy in alignment adjustment, and their heavy-duty construction and strength allow them to hold alignment longer and reduce stress on other components.

Advanced Technology
QWIKTIE’s versatile range of adjustment makes it a flexible stock addition. QWIKTIE tie rod assemblies are highly adjustable to fit over 80% of the straight tie rod lengths and styles in the market. QWIKTIE features easy color attributes for identification and accurate installation. Patent Pending.

Increased Versatility
With a versatile tie rod solution, QWIKTIE tie rod assemblies reduce overhead for maximum efficiency. QWIKTIE fits from 57-3/8” to 73-7/8” total length from grease zerk to zerk.

Increased Strength
Increased strength certifies the ability to hold the alignment longer, reducing stress on other suspension components providing increased fuel and tire mileage. QWIKTIE assemblies are heavy duty with a thicker and stronger cross-tube material for demanding loads.

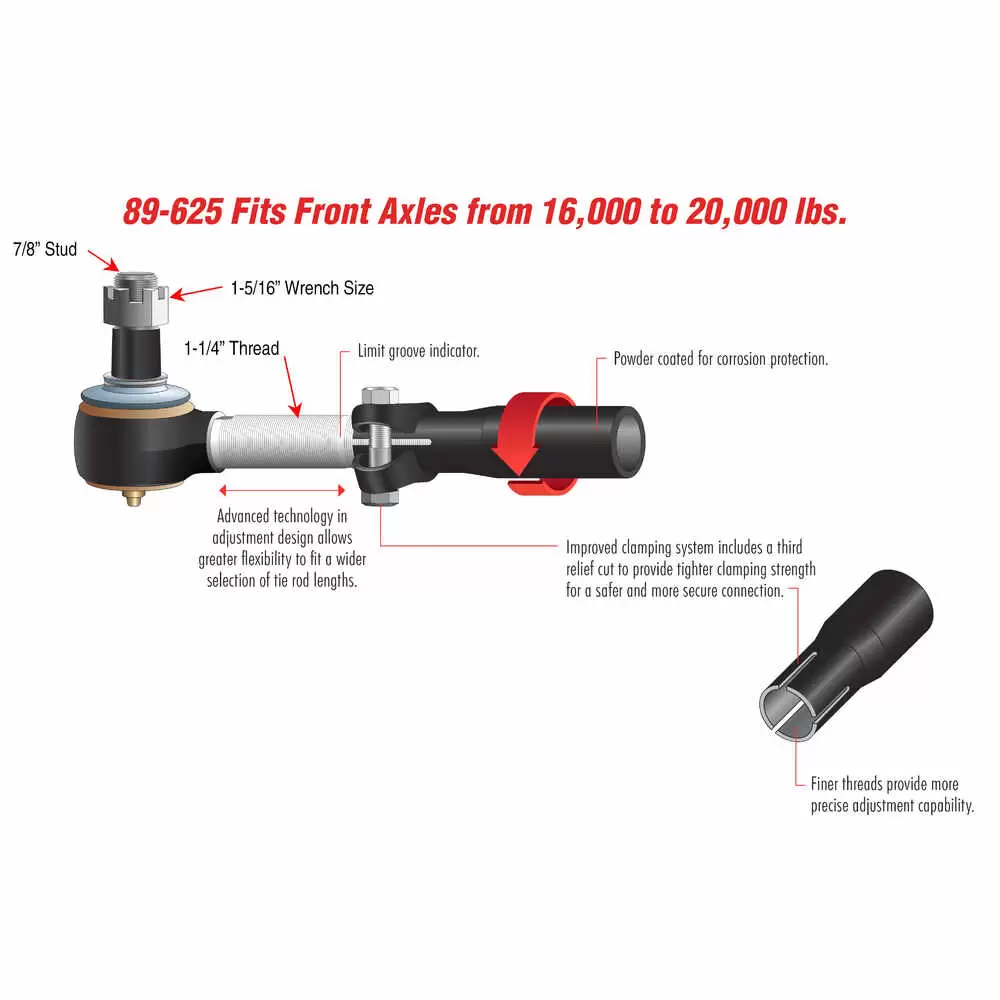

Greater Accuracy
Finer threads provide more precise adjustment and increased strength to hold the alignment longer reducing stress on the steering system. Threads are pre-lubricated for ease of installation and easy adjustment over time.

Safe and Secure
Alignment settings secured with time saving precision achieve a safe, secure connection between the tie rod and threaded tie rod end.

Tech Specs

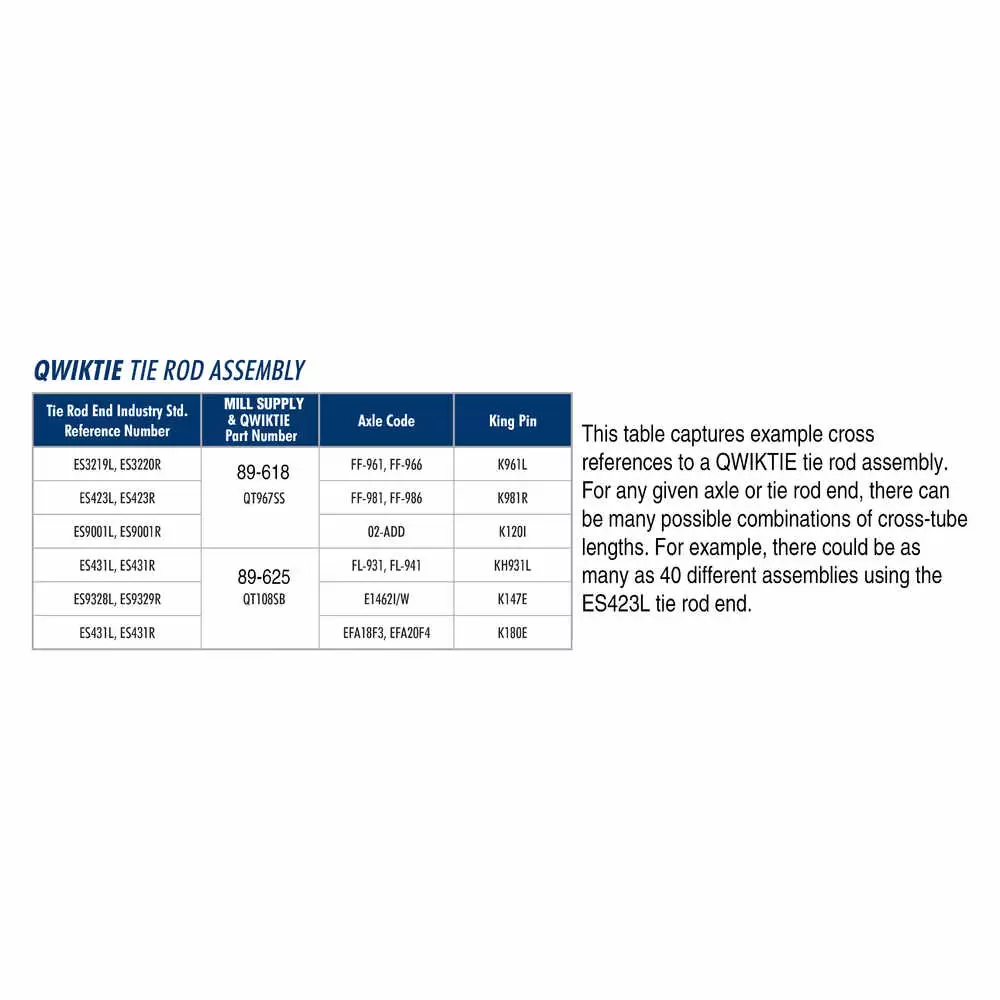

OEM/Other Numbers:
  • 85108888
  • 85108889
  • 85112008
  • 85112009
  • 370245001
  • 370245002
  • 887783A
  • 887784A
  • A8010185
  • A80110186
  • 462ES2090L
  • 462ES2090LS
  • 212041L
  • 212091R
  • 212207R
  • 21220R
  • 213030R
  • 213034R
  • 2585607
  • 3634207
  • 220TR118
  • 310169
  • 310710
  • 310228SF
  • 818471
  • 820626
  • 820695
  • 971128
  • TE2018
  • TE2021
  • TE2041
  • ES2091R
  • ES2113R
  • ES431LA
  • EA431RA
  • E4642
  • E4629
  • E5396
  • E6856
  • E9878
  • E9879
  • ES2116L
  • ES2208R
  • ES3030R
  • FTR346R
  • FTR431L
  • FTR423R
  • DOHZ3A130C
  • 6070910
  • 6073380010
  • 6073381310
  • 68146201505
  • A3144C237
  • A2144G449
  • A3144C549
  • A3144D238
  • A3144D550
  • A3144F448
  • A3144G449
  • A3144J296
  • A3144K297
  • L28SV500A14
  • L28SV500A18
  • A28SV500A18
  • L28SV500A30
  • 1649638C91
  • 1668480C91
  • 220TR118
  • 2603967C91
  • 461672C91
  • 486355C91
  • 486807C91
  • 491665C91
  • 50662C91
  • 506684C91
  • 581063C91
  • 463DS9837
  • 463DS9838
  • 463DS9842
  • 463DS9865
  • 25023471
  • 25168559
  • 7QH253P3
  • 7QH338
  • 6803303603
  • 6803303903
  • 6803307303
  • 817755
  • 820623
  • 820625
  • 820677
  • 822073
  • 822074
  • 822076
  • 822077
  • 971070
  • 971092'
  • 971094
  • 971190

Estimated Shipping Dimensions: 62" x 7" x 5"

Weight: 38.00 lbs

Stemco Kaiser King Pins

We are proud to offer Stemco Kaiser king pins for stepvans. These new king pins dont need to be reamed! That alone will save you hours on your king pin jobs. We offer two different kinds of Stemco Kaiser king pins, the Qwik Kits and Plus Kits.

Qwik Kit King Pings

What makes Qwik Kits different from Regular King Pins?

  • 300% More Grease!
  • Grooved Pin for Deeper Grease Penetration
  • Spiral Steel Bushing is No Ream
  • O Ring Sealed Top and Bottom Plate on Many Kits
  • Qwik Kits Hold 3 Times the Grease of a Standard King Pin

When you first install these kits you may be surprised at how much grease they actually hold. On the average a regular set of king pins will use about 12 pumps of grease before they are full. If you were to take that same hand grease gun to a Qwik Kit you would pump 42 times to fully lubricate the system. With all that extra lubrication your Qwik Kit king pins last up to 3 times as long as your standard pin.

Many of our customers tell us that king pin jobs usually take up their entire day. With Qwik Kit king pins you can cut your installation time to less than half. Qwik Kits use a No ream technology that saves you hours on labor cost. Qwik Kits are just that... Quick!

Does your box truck, garbage truck, ambulance, fire truck, crane truck, or other medium duty vehicle need maintenance? We have been the #1 supplier for step van parts for over 30 years and are now aiming to provide that same standard of customer service, fast shipping, and discount prices to medium duty truck owners. We distrubute parts for Todco, Whiting, Stemco Kaiser and Velvac. Whether you maintain a fleet or only have one or two trucks, we can help you keep your truck up and running without breaking the bank. If you have any questions or are unsure as to what exactly you need, you can either contact us via email or give us a call at 800-888-5072 between 8:00 a.m. - 5:00 P.M. E.S.T. and one of our experienced representatives will be happy to help you.
