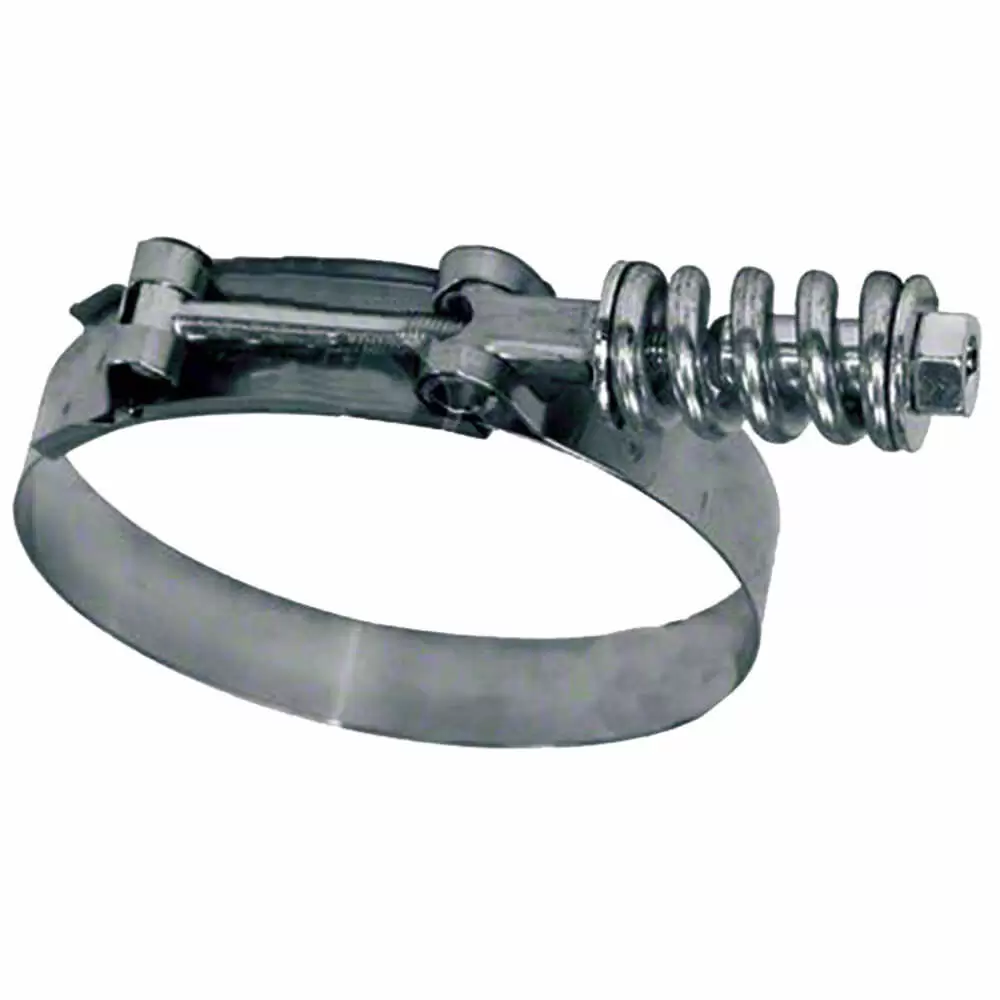

Stainless Steel T-Bolt Clamp, 3-3/8" to 3-11/16". 3/4" Wide Band and Trunnion

Out of Stock but Order Now! Estimated to ship in 7 days

$100 Coupon! Share:

Facebook

SMS Text

Description

Stainless Steel T-Bolt Clamp

Spring Loaded T-bolt clamp is a reliable clamping. The clamp uses a bolt and a spring to tighten the band and maintain constant pressure. This configuration is great for applications where temperature and pressure fluctuate frequently. The spring aides in keeping a seal on the hose and prevents loose connections. This product is a direct OE replacement.

Specific Features:

Direct OE replacement
Meets SAE J1508 Type SLTB standard for hose clamps
The spring auto adjusts the diameter of the band to keep constant tension on the hose
The bolt is zinc plated steel for corrosion resistance and long life
The band is made of 300 series stainless steel for high strength and corrosion resistance
Floating bridge ensures the bolt assembly does not damage the hose
Features ¼" T-bolt; torque range of 60 in-lbs. Note: Torque wrench recommended for installation; use of impact tools is NOT advised
HD Spring Loaded T-Bolt
0.75in Wide, 0.031in Thick 300 Series SS Band
1/4"-28 Plated Bolt

Applications	Universal
Type	HD-T Bolt-Spring loaded
Clamp Category	Norma HD Spring Loaded T-bolt clamps
Brand	Breeze
Width	0.750"
Band Thickness	0.031"
Max. Dia.	3.690"
Min. Dia.	3.380"
Torque Range	60 in-lbs.
Bolt Size	1/4" x 28

Tech Specs

Weight: 0.33 lbs
