Description

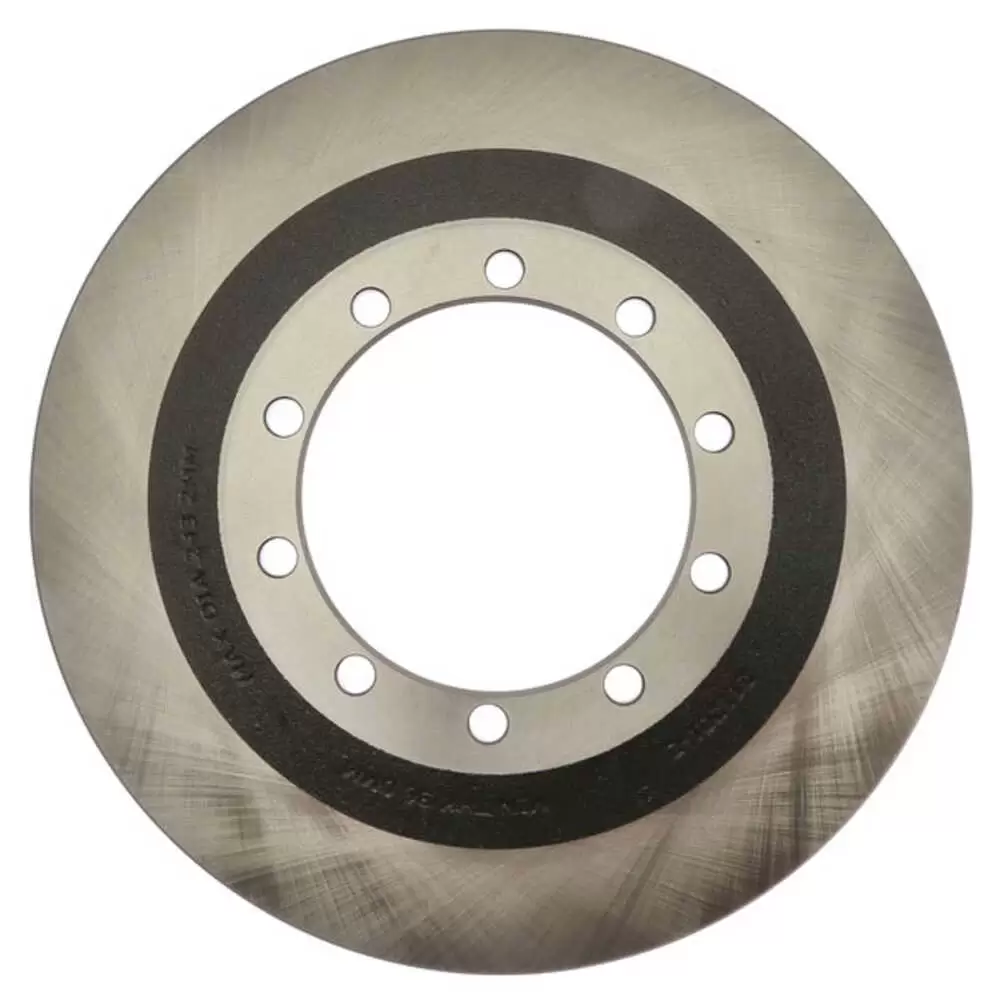

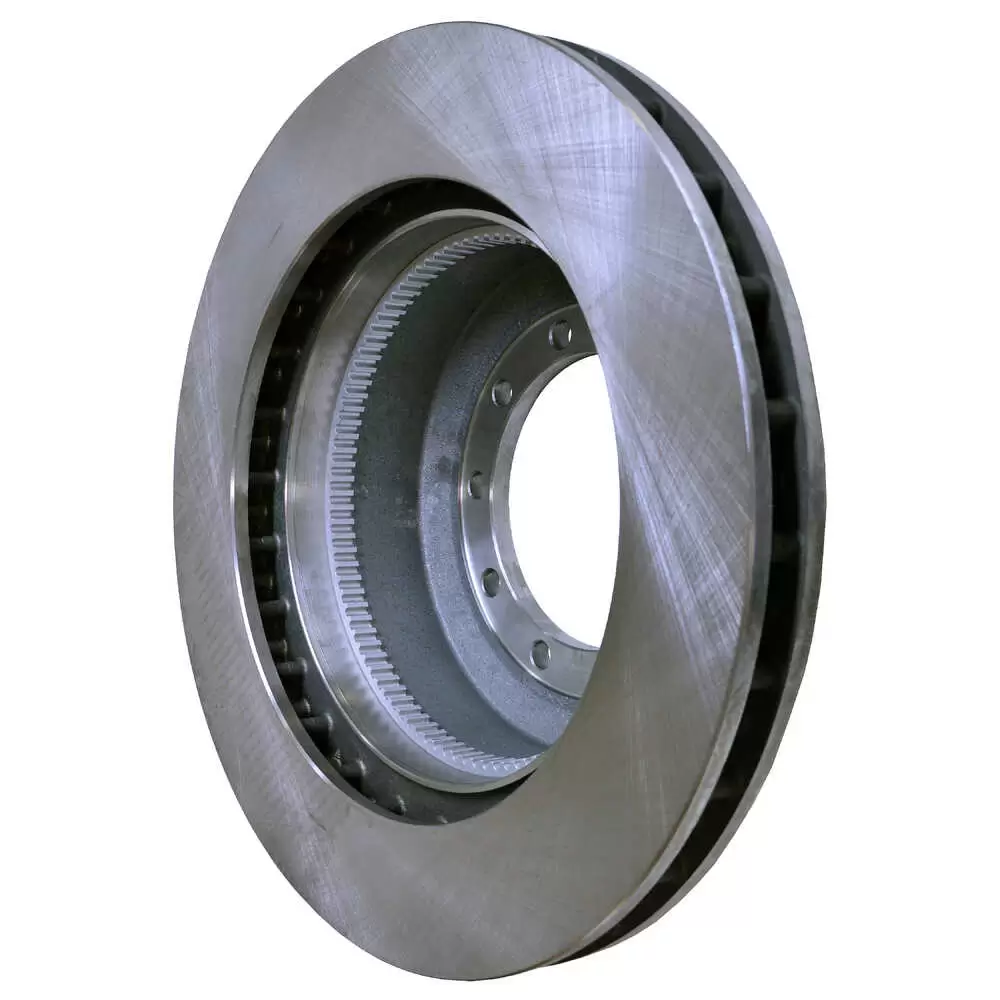

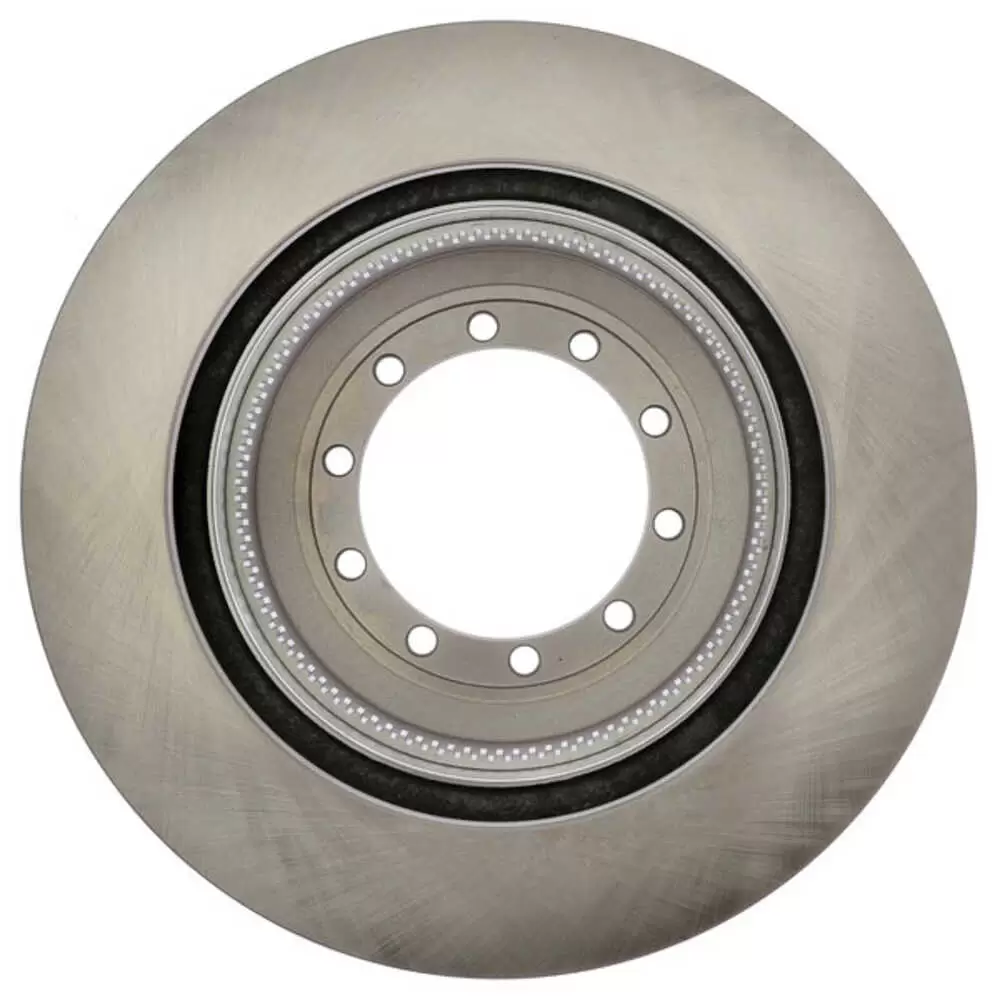

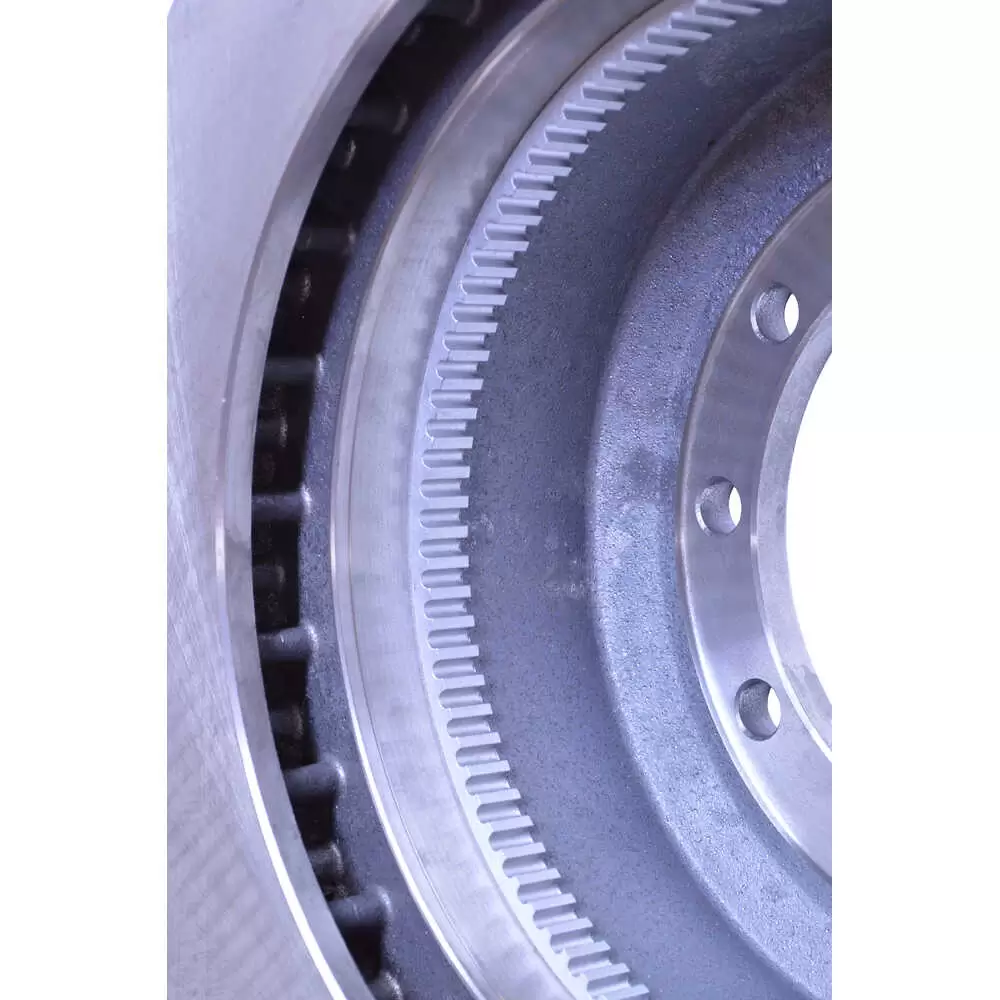

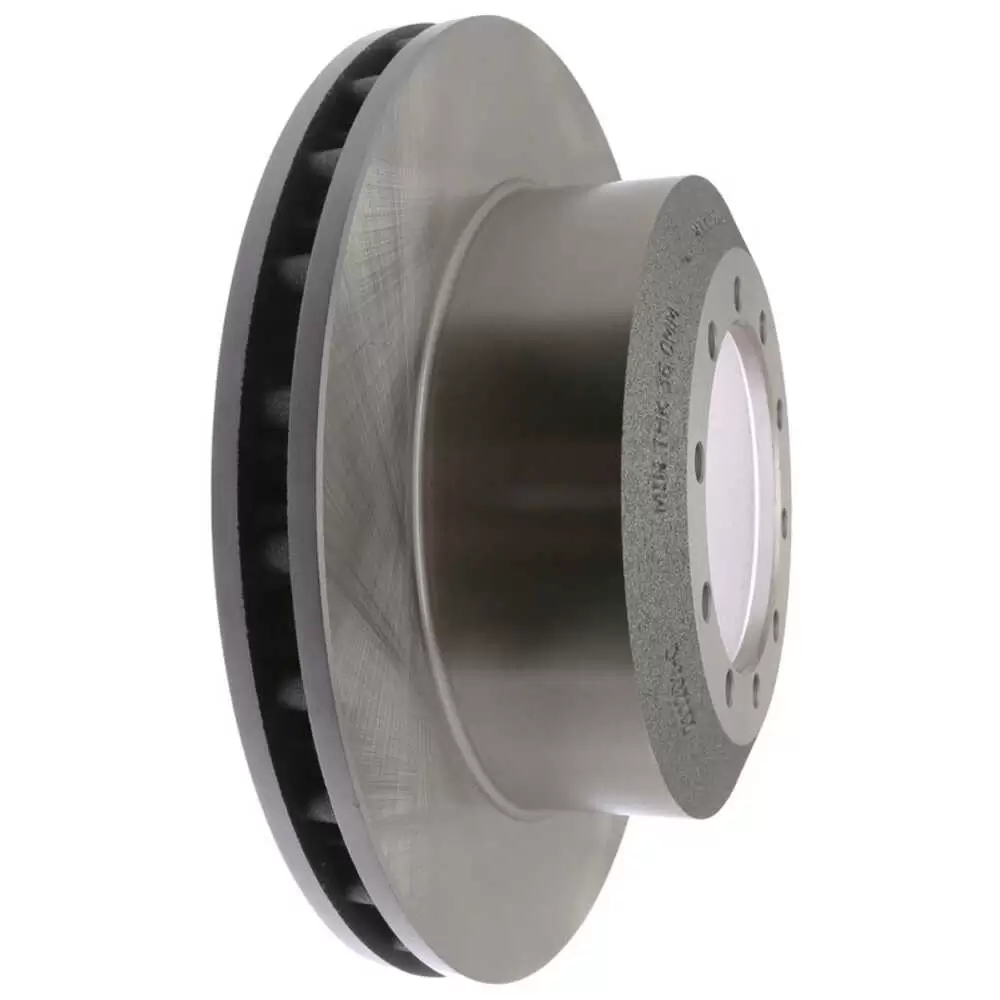

Rear Rotor with Exciter Ring -fits 2011-2020 Ford F59 Chassis Rear, 2010-2020 Ford F53 Chassis Rear, 2006-2009 Ford F53 Chassis Rear & 2002-2004 Ford F53 Chassis Rear

Product Specifications:

Brake Rotor Casting Type: Vented
Brake Rotor Diameter, Outer: 15.550 in / 394.970 mm
Brake Rotor Thickness, Discard: 1.417 in / 35.992 mm
Brake Rotor Thickness, Nominal: 1.500 in / 38.100 mm
Brake Rotor Type: Drum-in-Hat
Center Hole Diameter, Maximum: 5.495 in / 139.573 mm
Center Hole Diameter, Minimum: 5.490 in / 139.446 mm
Height, Overall: 4.870 in / 123.698 mm
Surface Finish: Plain
Packaged Weight: 46.8000 lb
Wheel Bolt Circle Diameter: 163.000 mm / 6.417 in
Wheel Bolt Hole Diameter, Maximum: 0.531 in / 13.487 mm
Wheel Bolt Hole Diameter, Minimum: 0.511 in / 12.979 mm
Wheel Bolt Holes, Primary: 10

Applications:

• 2011-2020 Ford F59 Stripped Chassis Rear
• 2011-2020 Ford F53 Motorhome Chassis Rear
• 2006-2009 Ford F53 Motorhome Chassis Rear
• 2002-2004 Ford F53 Motorhome Chassis Rear
• 2010-2020 Fleetwood Bounder Rear
• 2002-2004 Ford F-550 Super Duty Rear
• 2002-2004 Ford F-450 Super Duty Rear

Tech Specs

• 680191

Estimated Shipping Dimensions: 17" x 17" x 5"

Weight: 45.90 lbs
