Description

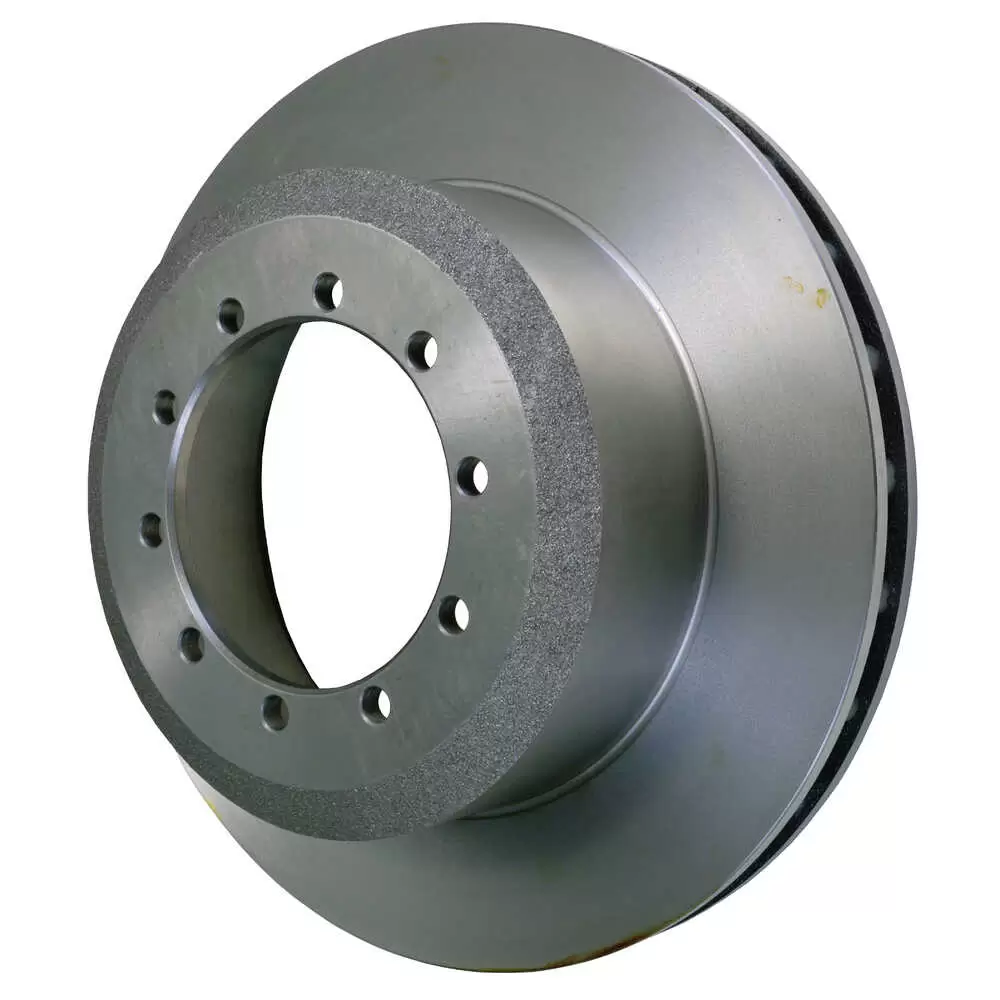

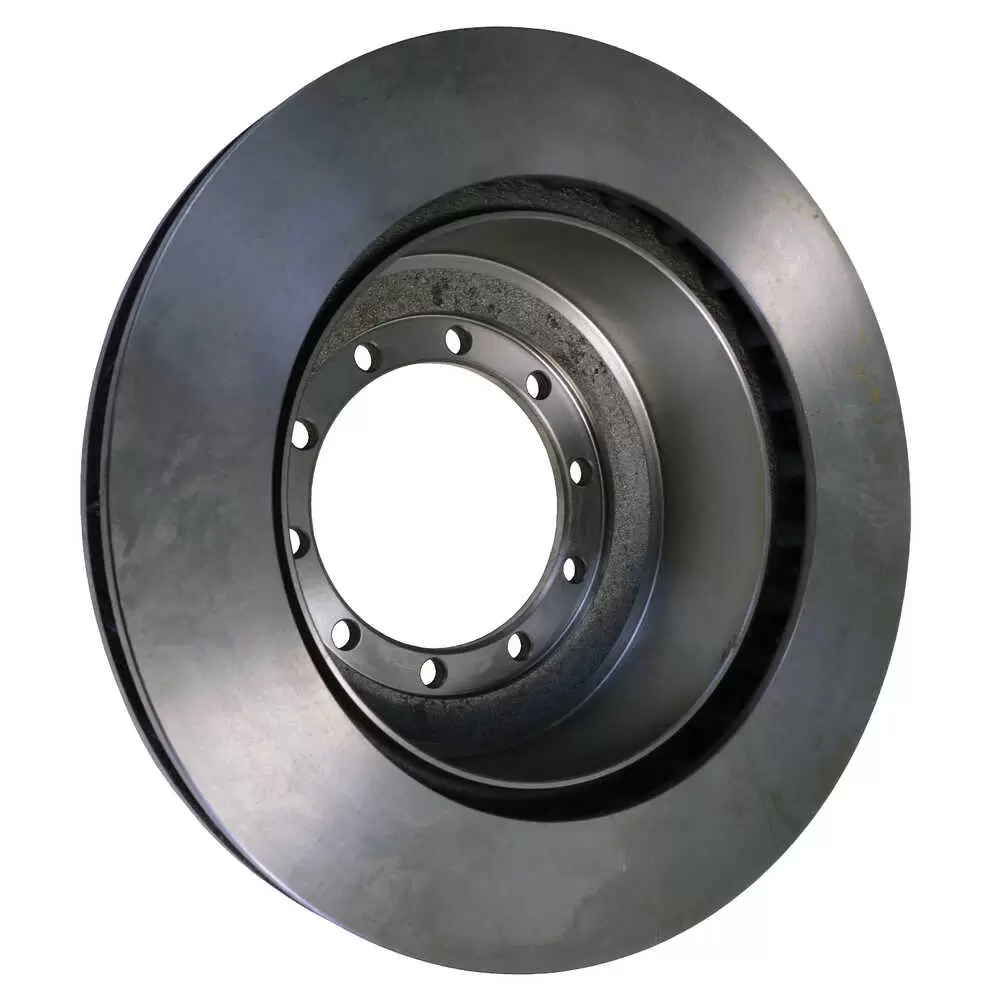

Rotor Front or Rear fits 2011-2019 Ford F59 Chassis Front & 2016-2020 Ford F59 Chassis Rear - 18000 to 22000 lbs. GVW - 10 bolt; bolt circle: 163mm, 15.55" OD x 4.87"H

Product Features:

Part Description: Disc Brake Rotor
Sub-Brand: Specialty - Truck
Grade Description: Specialty
Brake Rotor Casting Type: Solid
Brake Rotor Diameter, Outer: 15.550 in / 394.970 mm
Brake Rotor Thickness, Discard: 1.417 in / 35.992 mm
Brake Rotor Thickness, Nominal: 1.500 in / 38.100 mm
Brake Rotor Type: Drum-in-Hat
Center Hole Diameter, Maximum: 5.495 in / 139.573 mm
Center Hole Diameter, Minimum: 5.490 in / 139.446 mm
Height, Overall: 4.870 in / 123.698 mm
Surface Finish: Plain
Packaged Weight: 44.5000 lb
Wheel Bolt Circle Diameter: 163.000 mm / 6.417 in
Wheel Bolt Hole Diameter, Maximum: 0.531 in / 13.487 mm
Wheel Bolt Hole Diameter, Minimum: 0.511 in / 12.979 mm
Wheel Bolt Holes, Primary: 10

Applications:

• 2011-2019 Ford F59 Commercial Stripped Chassis Front
• 2016-2020 Ford F59 Commercial Stripped Chassis Rear
• 1999-2004 Ford F-450 Super Duty Rear
• 1999-2004 Ford F-550 Super Duty Rear
• 2003 Ford E-550 Super Duty Rear
• F53 Chassis

Tech Specs

OEM/Other Numbers:

• 66761

Estimated Shipping Dimensions: 16" x 16" x 5"

Weight: 42.55 lbs
