Description

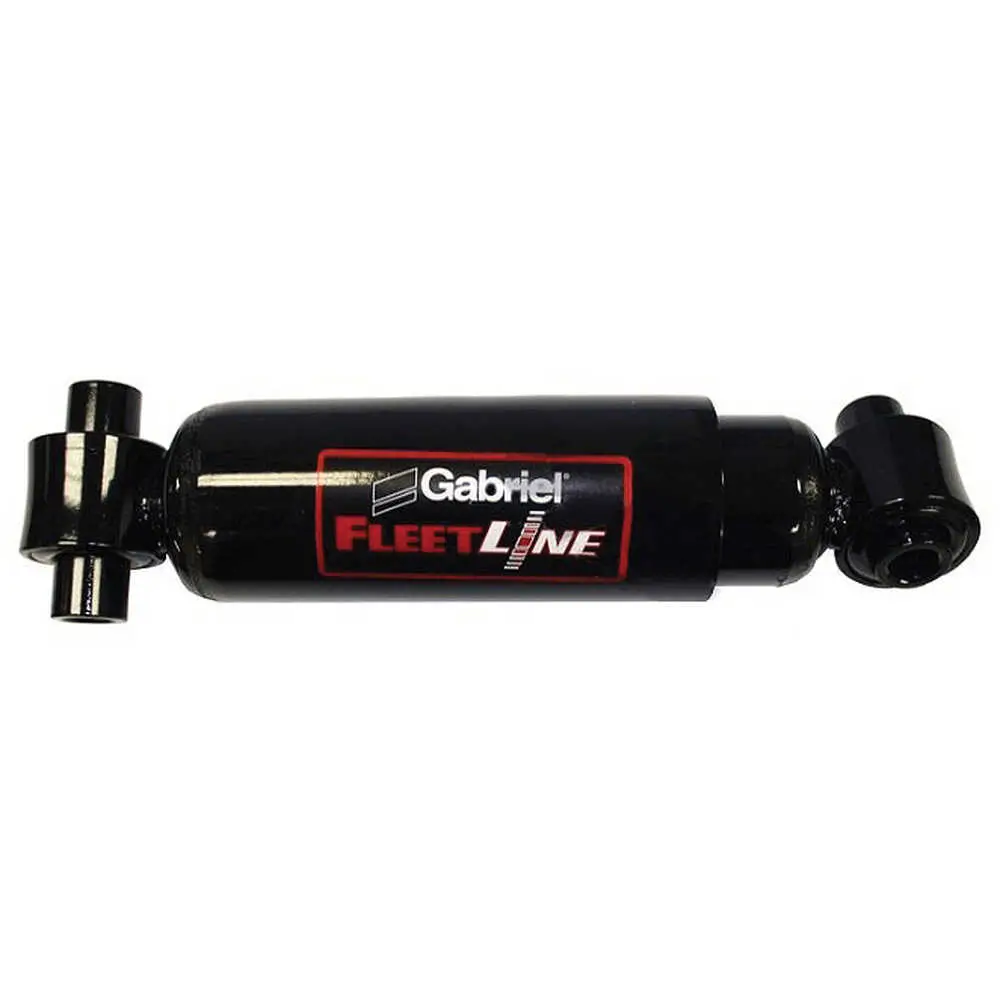

Rear shock absorber fits Freightliner 1999-2023 MT55, 1998-2020 M2 and Business Class

Product Overview:

Gabriel's Fleetline Heavy Duty Shocks are direct OE replacements for class 6-8 trucks. Designed with a valve rating that compensates for suspension softening to offer performance that meets the original parts. Fleetline parts incorporate a caged piston design that provide superior dampening across the spectrum of operation. This part is fabricated to be long lasting; durable and keep your cabin stable even in the roughest conditions.

Features:

• The self-compensating piston seal offers reliable and consistent shock absorption for a smooth and even ride
• The hydraulic stop prevents the shock from over-extending or topping out, extending the product's life
• Internal piston is made of chrome for improved corrosion resistance
• Multistage all-coil spring valving provides improved dampening and reduces vibration
• Bulged design increases the fluid capacity and keeps cool in extreme conditions
• Features a 1-5/8" bore to handle harsh operating conditions

Applications	Freightliner Western Star
Type	D85300 & 85700
Gabriel Number	85331
Product Line	FleetLine
Collapsed Length	12.85
Lengths Stroke	6.77
Controls Rebound	1757
Controls Compression	396
External Diameter Illustration	D
Dust Tube	Yes
Recoil Cutoff	Yes
Extended Length	19.62
Extended	19.62

Tech Specs

OEM/Other Numbers:

• 65489

Weight: 9.55 lbs
