Front Right Outer Tie Rod End, 4x4 - Fits Chevrolet Kodiak, GMC Topkick C4500/C5500 2005-2009

Out of Stock but Order Now! Estimated to ship in 7 days

$100 Coupon! Share:

Facebook

SMS Text

Description

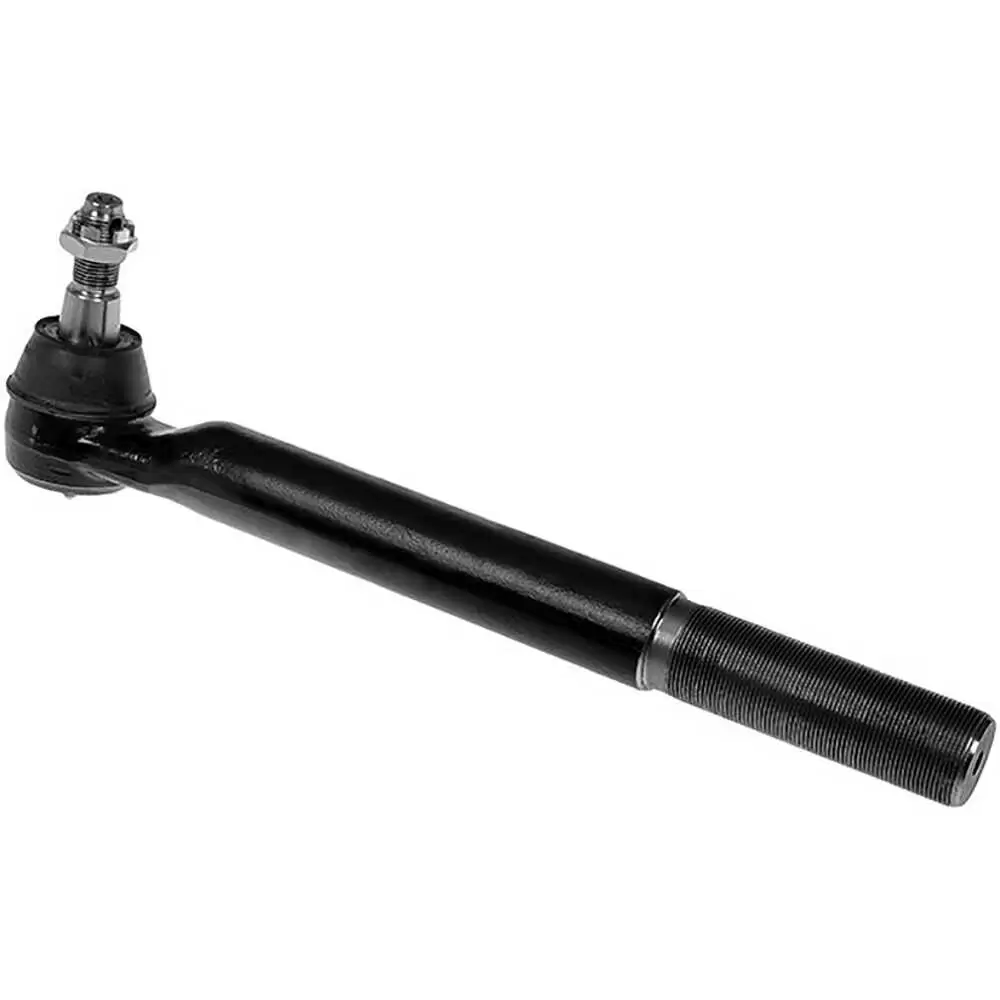

Front right outer tie rod end, 4x4 - Fits Chevrolet Kodiak, GMC Topkick C4500/C5500 2005-2009

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Features:

Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications.
Durably designed - factory-sealed and precision-forged housing resists future corrosion.
Reliably engineered - built to decrease wear rate and ensure overall strength.
Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States.

Product Details:

Adjustable: Yes
Bearing Material: Metal
Bolts Included: No
Center Mount Hole Quantity: 0
Center Mount Stud Quantity: 1
Color: Black
Cone Outside Diameter: 12.2 mm
Dust Boot Included: Yes
Dust Boot Material: Polychloroprene
End 1 Attachment Type: Threaded
End 1 Gender: Male
End 1 Thread Diameter: 1-3/8"
End 1 Thread Direction: Counterclockwise (Left)
End 1 Thread Pitch: 16 mm
End 1 Threads Per Inch: 2
End 2 Attachment Type: Threaded
End 2 Gender: Male
End 2 Thread Diameter: 18 mm
End 2 Thread Direction: Clockwise (Right)
End 2 Thread Pitch: 1.5 mm
End 2 Type: Male Threaded
Finish: Coated
Grade: Regular
Grade Type: Standard
Grease Fitting Included: Yes
Head Drive Type: Smooth
Height: 90.5 mm
Housing Material: Steel
Length: 377 mm
Material: Steel
Mounting Hardware Included: Yes
Outside Diameter: 38 mm
Pre-Greased: Yes
Stud Type: Taper
Thread Pitch: 1.5 mm
Tie Rod End Thread Diameter: 1-3/8"
Tie Rod Material: Steel
Tube Diameter: 38 mm
Type: Straight
Weight: 8.55 lb.
Width: 57.5 mm

Tech Specs

OEM/Other Numbers:

19153631
