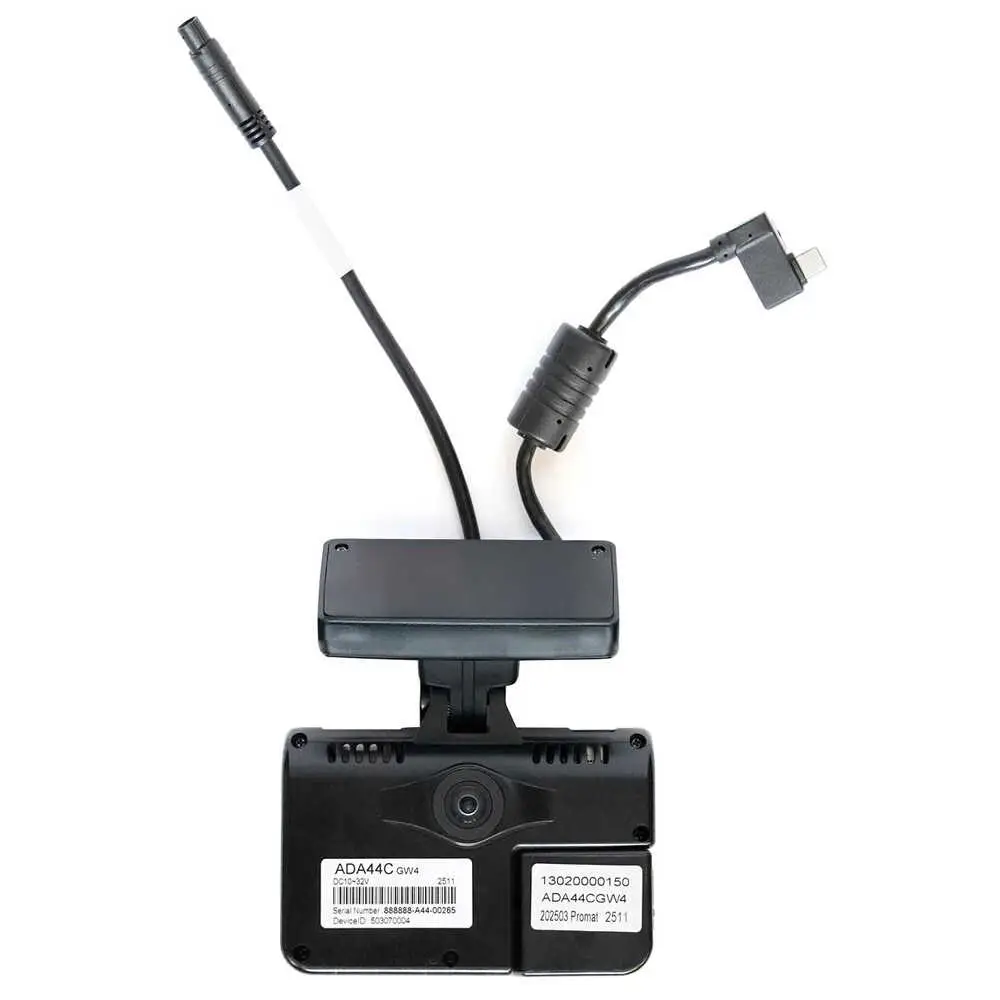

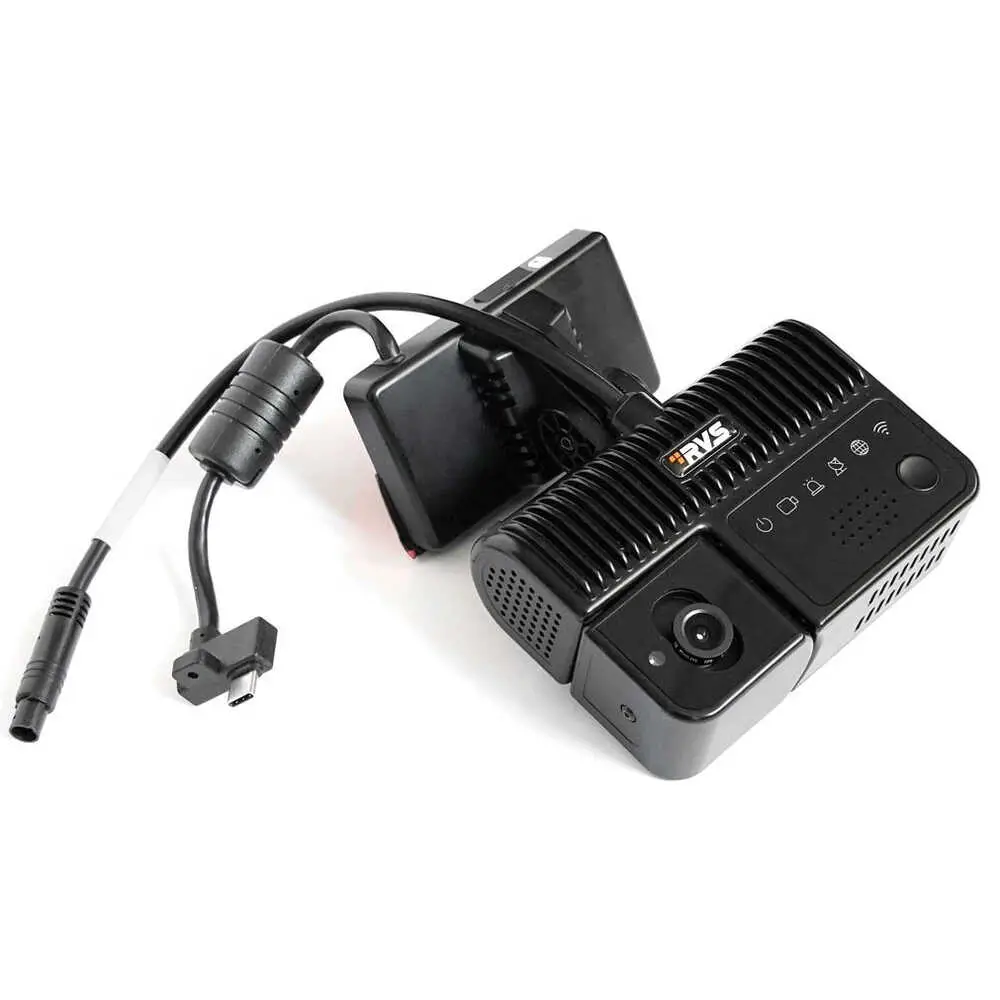

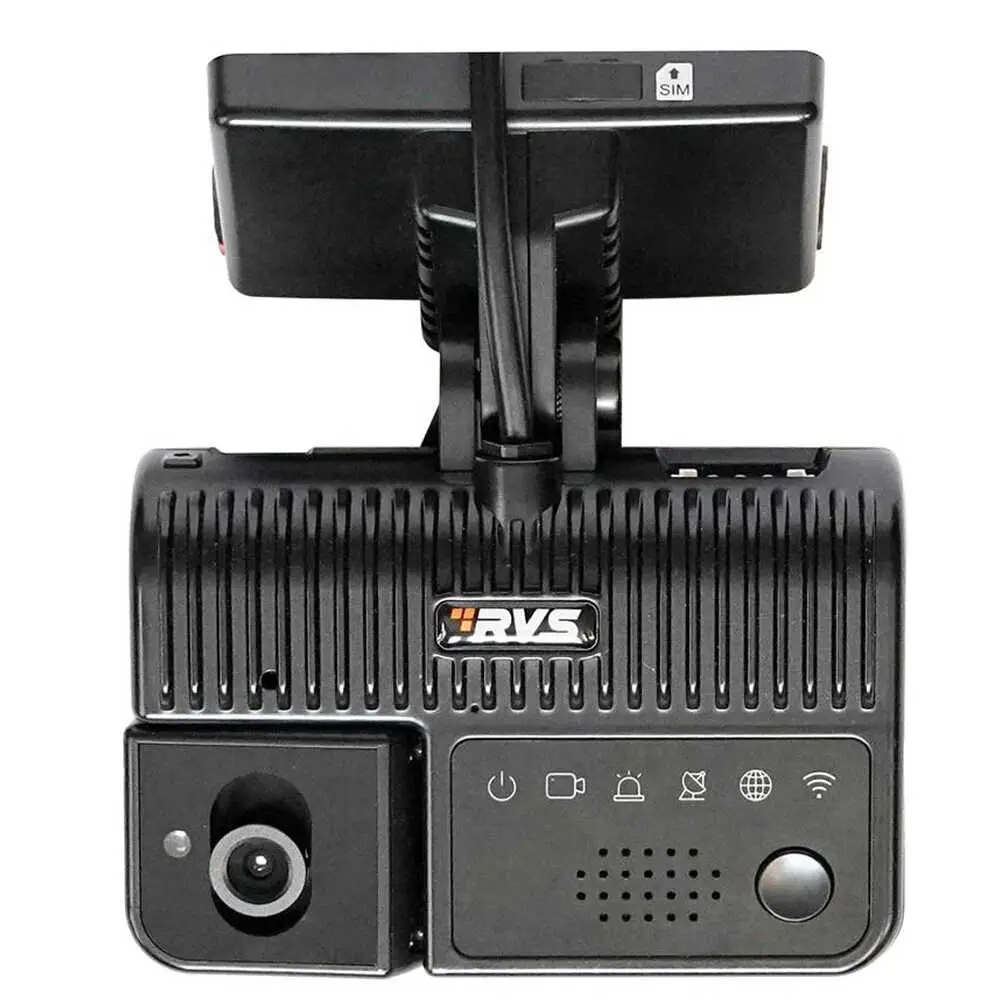

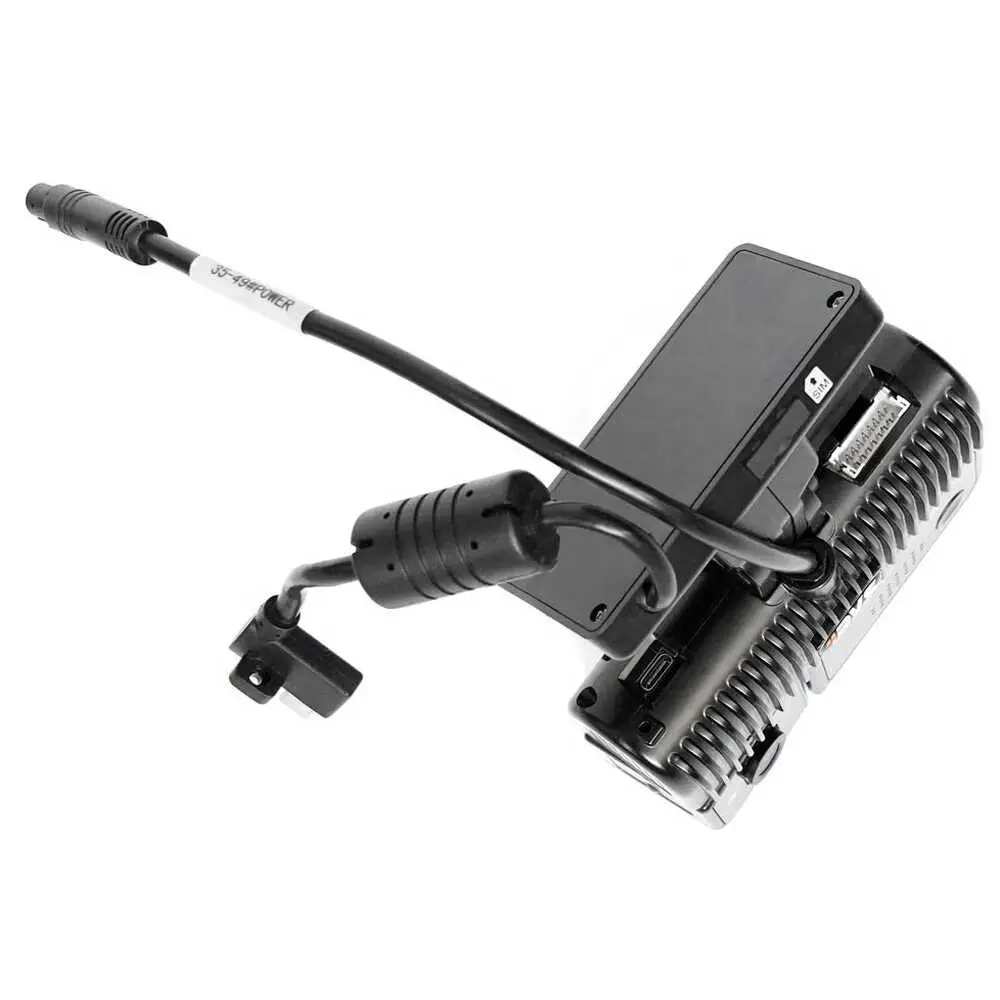

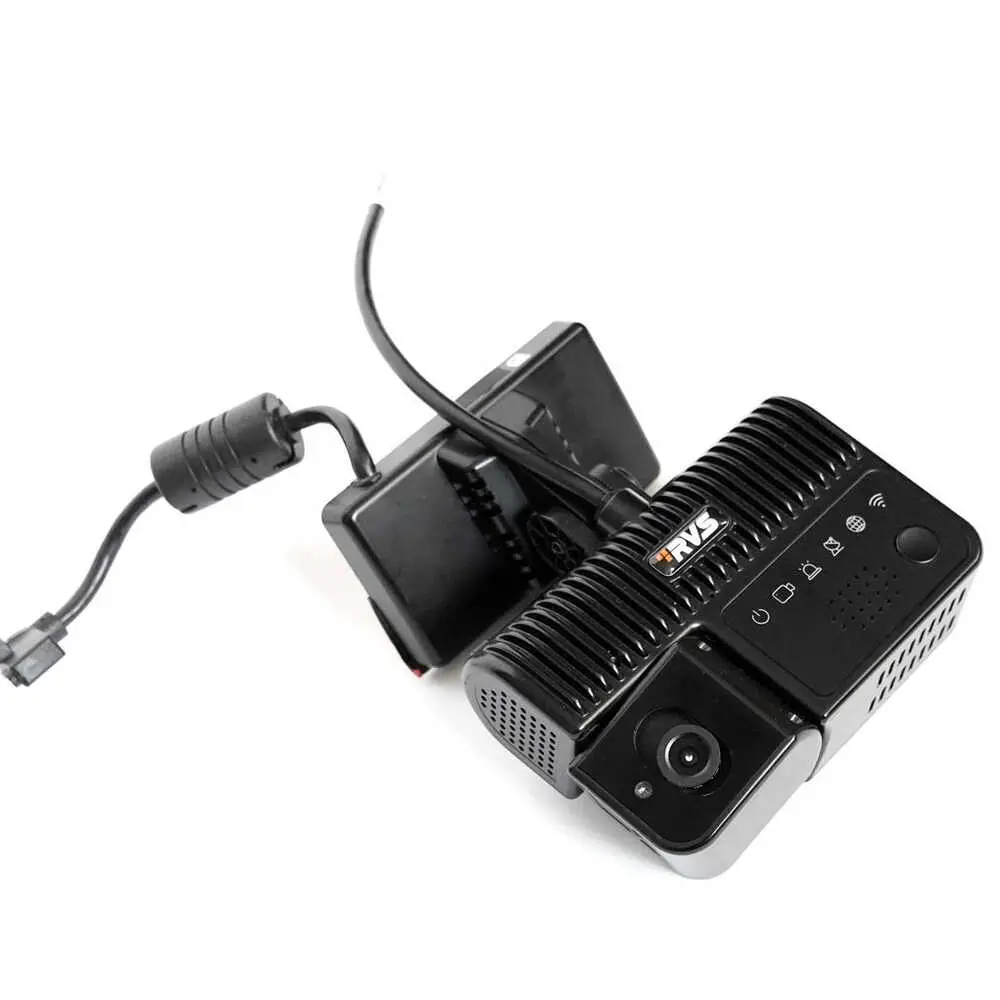

DualSight AI Road & Driver Facing Dash Camera

The DualSight™ AI Dash Camera delivers advanced road and driver monitoring in one compact, fully integrated system. Its 2K road-facing camera and 1080p driver-facing camera work with onboard ADAS and DMS algorithms to detect collisions, lane departures, unsafe following distances, fatigue, distraction, smoking, phone use, and more—providing real-time voice alerts to help prevent incidents.

Can connect to a 4G SIM card or Wi-Fi hotspot, and the system connects effortlessly to the fleet platform for live viewing,
tracking, remote configuration, and automated event uploads. DualSight™ AI captures every angle with high-definition recording
and H.264/H.265 compression.

Dual TF card storage (2 x microSD@256GB), a supercapacitor for power-loss protection, and intelligent pre-recording ensure
crucial moments are always captured. Designed for fast installation with integrated antennas and efficient heat dissipation,
DualSight™ AI provides fleets a reliable, all-in-one solution to enhance safety, compliance, and operational visibility.

Product Highlights:

• 2K Road-Facing Camera and 1080p Driver-Facing Camera
• DualSight™ AI Captures Every Angle with High-Definition Recording and H.264/H.265 Compression
• Dual TF Card Storage
• Fast Installation with Integrated Antennas and Efficient Heat Dissipation,

Specifications & Features:

• ADAS Camera Specification:
  • Image Device: 1/2", Megapixel Resolution, CMOS Sensor
  • Lens: 2.3mm HFOV 130° VFOV 90°
  • Wide Dynamic Range: 74dB
  • Lens Interface Type: Built-in Lens
• DMS Camera Specification:
  • Image Device: 1/2.8’’ 2 Megapixel CMOS Sensor
  • Lens: 2.3mm HFOV 135° VFOV 70°
  • Wide Dynamic Range: Above 120dB
  • Lens Interface Type: Built-in Lens
• System Specification:
  • Operating System: Linux
  • Software: Mobile APP/WebUI (Windows, iOS, WebUI
  • Operations Permissions: Admin & User
  • Video Input: Built-in 2K+ 1080P+2 external input *1080P
  • Video Standard: PAL: 25 fps, NTSC: 30 fps
  • Recording Resolution: 2K/1080P/720P/D1
  • Compression: Video: H.264/H.265 Audio: ADPCM
  • Storage: Max 2 microSD Cards @256GB each. Video Bit Rate 10Mbps/ch
  • Wireless: 3G/4G Optional
  • Wi-Fi: Wi-Fi and Wi-Fi hotspot/AP
  • GPS: Internal or external GPS/GLONASS modules
  • Power Input: 10~32V / Maximum Power 24W
  • Power Output: 12V@2A
  • Standby Power Consumption: 100mW
  • Operating Temperature: -20°C ~ +60°C, RH 80%MAX

Tech Specs

Estimated Shipping Dimensions: 12" x 10" x 8"
