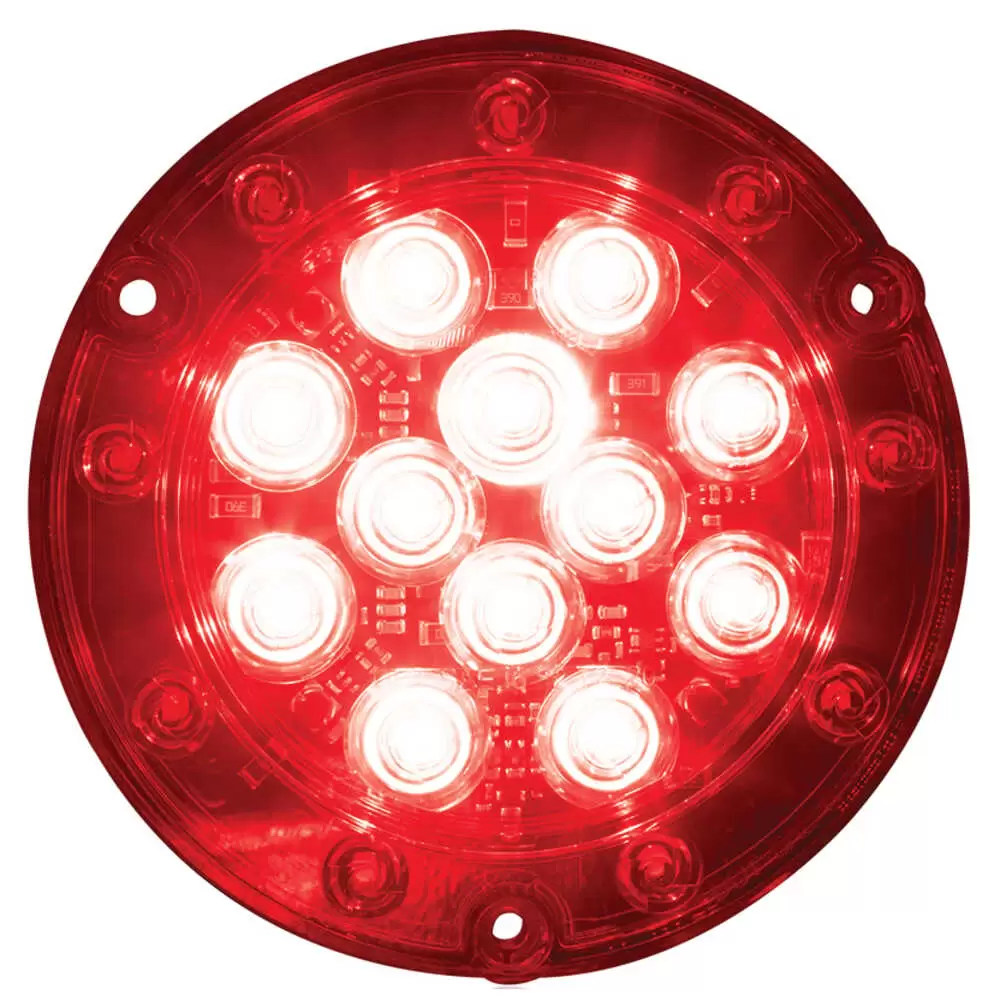

5.5" Round Flange Mount LED Combination Stop / Turn / Tail with Back-up Light and Work Light

SKU: 66-437

5.5" Round Flange Mount LED Combination Stop / Turn / Tail with Back-up Light and Work Light

SKU: 66-437
$93.42

Out of Stock but Order Now! Estimated to ship in 5 days

Description

5.5" Round, Flange Mount, Combination Stop/Turn/Tail, Back-up Light, and LED Work Light. LED Flange contains 9 White LED's that operate in back-up light or work light mode. In addition, our patented Lightning Optics provide superior off-axis visibility for improved driver safety. 5 discrete wires allow the Work Light wire to be connect to a dedicated switch (user supplied) to activate the Work Light independently of the STT & BU functions. M85437R-WL is thin-profile at 0.5" depth and is backed by a 5-year warranty.

Features:

  • Dual Function LED Flange: Back-Up Light & Work Light
  • 310 Lumen Back-Up / 1,000 Lumen Work Light
  • Patented Hybrid Series with Lightning Optics, US Patent No 8,009,364 8,052,313 8,717,679 B2
  • Mounting Screws and Screw Caps Included
  • Neoprene Gasket Attached
  • 5 Blunt Cut Wires
  • Polycarbonate Lens & Housing
  • DOT FMVSS108 / CMVSS108 Compliant
  • 5 Year Warranty

Product Details:

  • LEDs: 21 (12 Red, 9 White)
  • Voltage: 12.8VDC
  • Amp Draw: BU 0.2A, Tail 20mA, Stop 0.2A, WL 1.0A
  • Dimensions: 5.5" Diameter x 0.5" Depth
  • Mounting: 3-Hole Flange Mount 3 (3/16") holes Hole cutouts: 1-3/16" for cable exit
  • Connector: 5 Leads Blunt Cut, 10"
  • Legal Heading: R, I6 S2 T2
  • DOT / SAE: J593, J2040, J2261
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov.

Tech Specs

OEM/Other Numbers:
  • M85437RWL

Weight: 0.65 lbs

When you are looking for an inexpensive solution but want the reliability of buying from someone that's been around the block a few times, you'll need take a close look at Maxxima's line of quality LED Lighting. From Stop, Tail & Turn (STT), Emergency, Interior Cargo, Clearance and Side Marker LED Lamps, Maxxima has been at the forefront of innovation and revolutionary lighting products for trucks, buses, trailers, medium and heavy-duty trucks. LED lights consume 10% of the energy required for incandescent, they are more resistant to shock, vibration and last a phenomenal 100,000 hours, or about a decade of regular use. Maxxima proudly offers a five-year warranty for their line of LED lights and Mill Supply is proud to offer the Maxxima line.
