Description

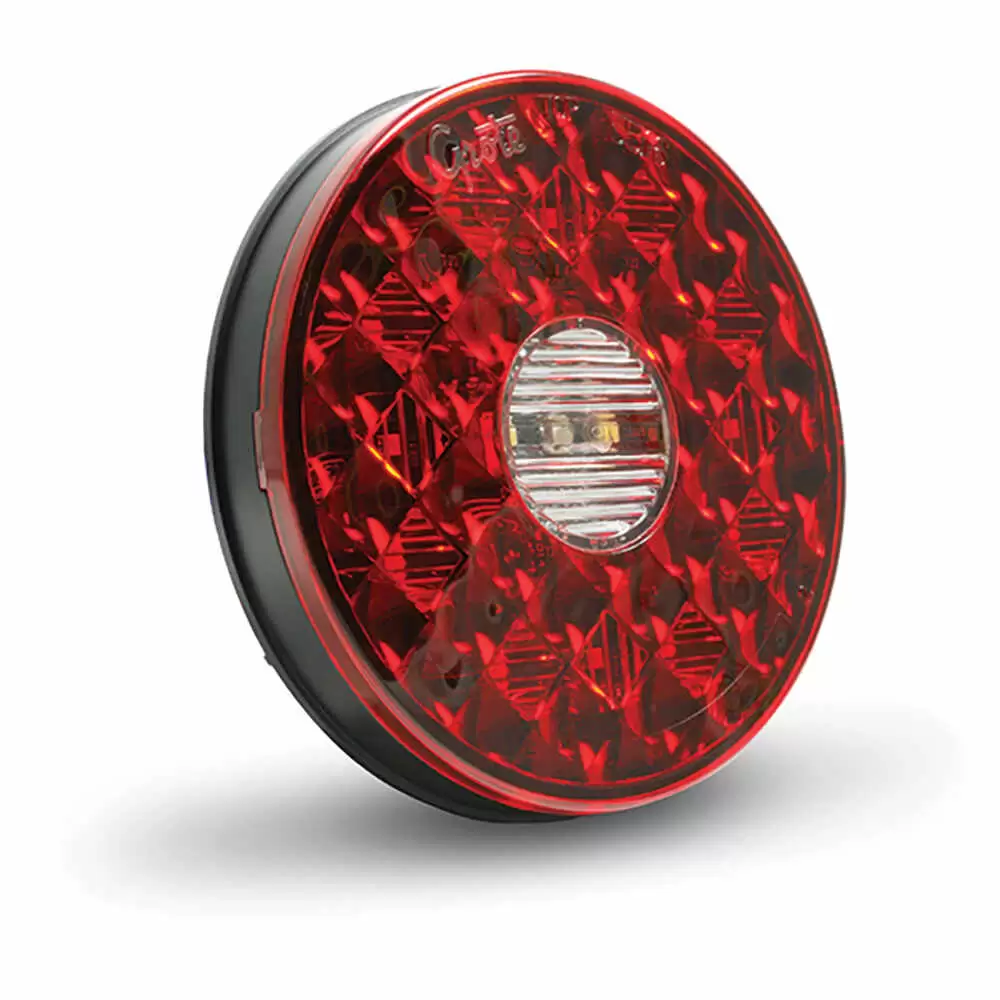

4" Round Grommet Mount Light Stop / Tail / Turn Light with integrated backup - Needs Hard shell pigtail connector GT66863

Features:

• Innovative patented design combines all Stop Tail Turn and Backup functions into one industry standard size lamp.
• High Compliance design using dedicated LEDs for Stop and Tail functions
• Assembled in Stainless Steel Flange.
• A new robust design for consistent compliance utilizing dedicated LEDs for Stop and Tail
• Matches the design of the 55162 Stop Tail Turn with Back-up
• Provides high level electrical protection for: reverse voltage, over voltage, electrical transients, and overheating
• Robust laser weld construction
• Designed to meet electrical specifications of all major Class 8 truck manufacturers
• Provides high level electrical protection for: reverse voltage, over voltage, electrical transients, and overheating.

Product Details:

• Material: Polycarbonate Lens, PC/ABS Housing
• Color: Red, Clear
• Lens Color: Red/Clear
• Housing Color: Black
• Voltage: 12V
• Amperage: .08A-.31A
• Mounting Type: Grommet, Bracket
• Connection Type: Hard shell
• Size: 4"
• Regulations: FMVSS 108
• Functions: S, T, I, R(2)
• VMRS: 034-002-059
• Diameter: 4"

Tech Specs

Estimated Shipping Dimensions: 4" x 4" x 2"

Weight: 0.22 lbs
