Description

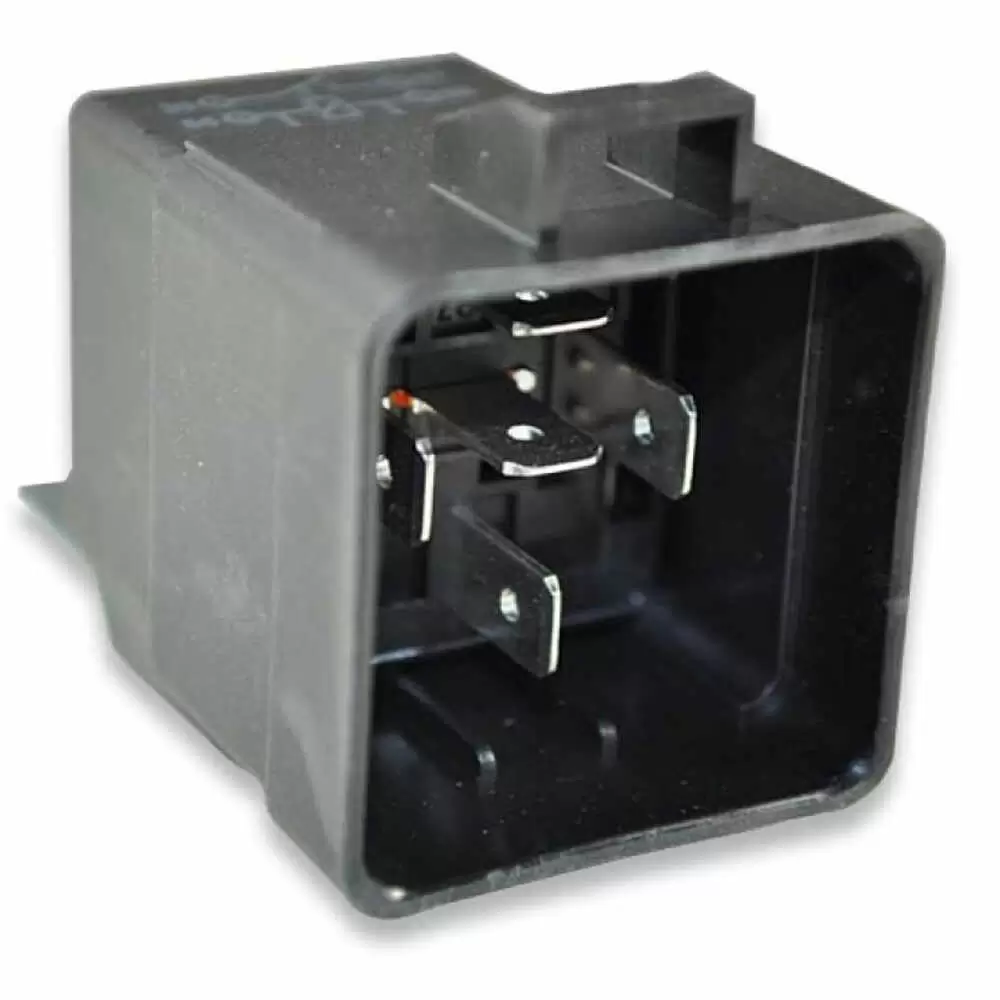

Weatherproof Mini Relay, 12V 20/40 Amp with Bracket SPDT Single Pole Double Throw. Ideal when in use with fog lights. Relay will turn off fog lights with High beams are turned on.

Technical Data

• Nominal Voltage 12V
• Operating / Releasing Time ≤ 10 ms / ≤ 10 ms
• Rated Continuous Load N/O 40A | N/C 20A at 85°C
• Dielectric Strength ≥ 1000 VDC
• Ambient Temperature -40°C...+125°C
• Max. Inrush Load 150 A
• Contact Form 1 Form C / SPDT
• Resistive Load / Switching Cycles
  N/O 40A | N/C 20A , 150,000 cycles
• Contact Material AgSnO2
• Inductive load / Switching Cycles
  N/O 30A | N/C 20A , 100,000 cycle
• Operating / Drop out Voltage ≤ 8.0 V / ≥ 1.0 V
• Lamp Load (capacitive) / Switching Cycles
  N/O 30A | N/C 20A , 100,000 cycle
• Max.Coil Voltage 16V
• Vibration 20 – 200 Hz, 50 m/s_, 6 h per axis
• Coil Resistance 85 Ohm ± 10% (excluding suppression component)
• Mechanical Shock 500 m/s_, 11 ms, period: 1 min, 1000 times
• Suppression Resistor, 680 Ohm
• IP Rating IP54 DIN IEC 60 529
• Mechanical Cycles 10,000,000

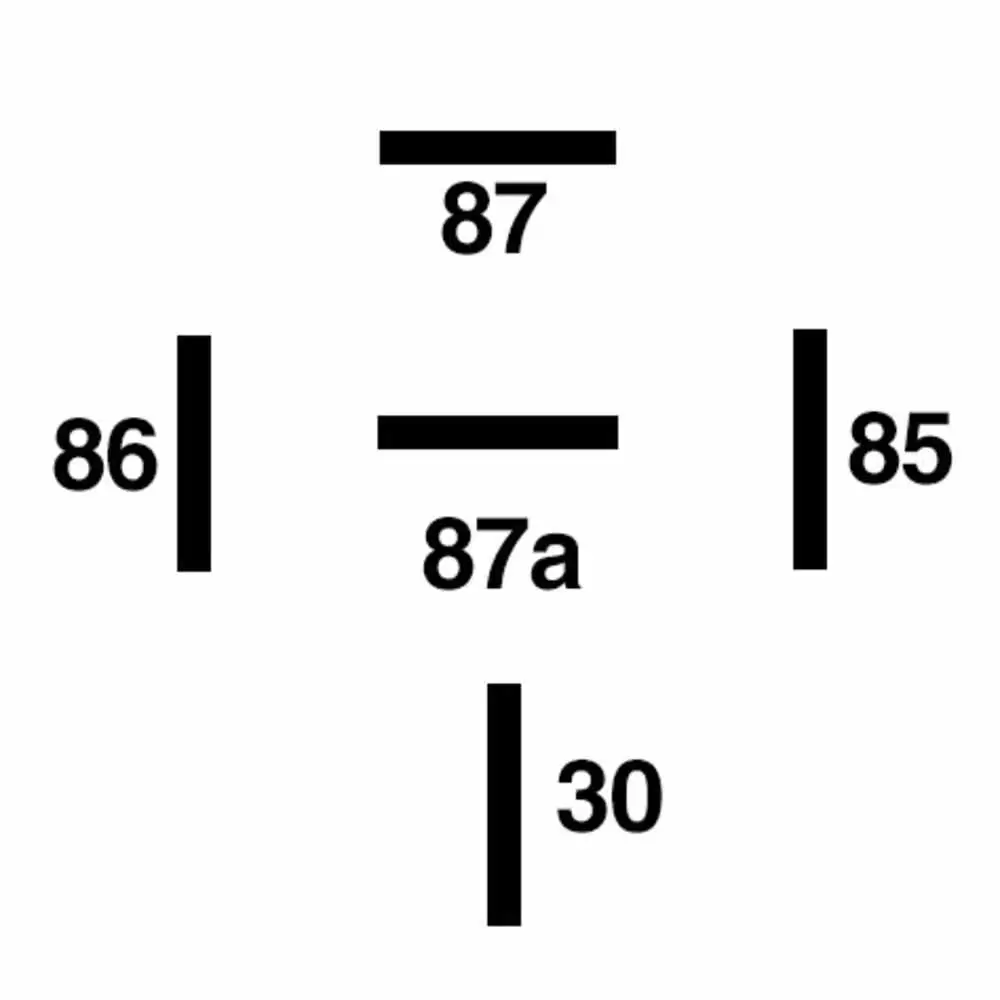

• Terminals
  85, 86: ISO 8092 6,3 x 0,8, CuZn, gal Sn
  30, 87, 87A: ISO 8092 6,3 x 0,8, E-Cu, gal Sn

Tech Specs

OEM/Other Numbers:

• 4RD 960 38815
• H41388151
• 007794301
• 007794911
• 960388157
• 007794307
• 0 332 204 184
• VF465F11S01
• VF465F21S01
• V23134J1052D642

Weight: 0.08 lbs
